The 1/4 Male Iron Pipe x 1/4 Female Iron Pipe x 1/4 Male Flare Tee is a versatile, three-way fitting designed to connect male pipe threads (MIP), female pipe threads (FIP), and male flare fittings in a single junction. This tee fitting allows for branching or splitting fluid, gas, or air lines efficiently while maintaining a secure, leak-free connection. Made from high-quality brass for corrosion resistance and longevity, with optional stainless steel for high-pressure applications
|
Specification |
Details |
|
TYPE |
Male Iron Pipe x Female Iron Pipe x Male Flare Tee |
|
DESIGN |
Three-way tee design – ideal for splitting or combining fluid and gas flow |
|
MATERIAL |
Brass for corrosion resistance or stainless steel for high-strength applications. |
|
MATERIAL CONSTRUCTION |
Forged Brass |
|
ADDITIONAL INFORMATION |
0.03" Tube Wall Thickness, 0.91" Center to End, 0.47" Body Size |
|
WEIGHT (LBS) |
0.110 |
|
CONNECTION SIZE 1 |
1/4" |
|
CONNECTION SIZE 2 |
1/4" |
|
CONNECTION SIZE 3 |
1/4" |
|
CONNECTION TYPE |
MIP|FIP|Male SAE Flared |
|
CONNECTION TYPE 1 |
MIP |
|
CONNECTION TYPE 2 |
FIP |
|
CONNECTION TYPE 3 |
SAE 45 deg Male Flared |
|
DIMENSIONS |
1.88" L |
|
FOR USE WITH |
Aluminum, Brass, Copper, Steel Hydraulic Tubing That Can Be Flared |
|
FITTING TYPE |
90 deg Elbow |
|
SHAPE |
Tee |
|
PRESSURE RATING |
1400 psig |
|
TEMPERATURE RATING |
-65 to 250 deg F |
|
THREAD SIZE |
1/4-18 x 7/16-20 |
|
APPLICATIONS |
Ideal for hydraulic system, pneumatic system, gas system and HVAC |
|
BRAND |
Midland Industries |
The 1/4 Male Iron Pipe x 1/4 Female Iron Pipe x 1/4 Male Flare Tee is a versatile, three-way fitting designed to connect male pipe threads (MIP), female pipe threads (FIP), and male flare fittings in a single junction. This tee fitting allows for branching or splitting fluid, gas, or air lines efficiently while maintaining a secure, leak-free connection. Made from high-quality brass for corrosion resistance and longevity, with optional stainless steel for high-pressure applications
|
Specification |
Details |
|
TYPE |
Male Iron Pipe x Female Iron Pipe x Male Flare Tee |
|
DESIGN |
Three-way tee design – ideal for splitting or combining fluid and gas flow |
|
MATERIAL |
Brass for corrosion resistance or stainless steel for high-strength applications. |
|
MATERIAL CONSTRUCTION |
Forged Brass |
|
ADDITIONAL INFORMATION |
0.03" Tube Wall Thickness, 0.91" Center to End, 0.47" Body Size |
|
WEIGHT (LBS) |
0.110 |
|
CONNECTION SIZE 1 |
1/4" |
|
CONNECTION SIZE 2 |
1/4" |
|
CONNECTION SIZE 3 |
1/4" |
|
CONNECTION TYPE |
MIP|FIP|Male SAE Flared |
|
CONNECTION TYPE 1 |
MIP |
|
CONNECTION TYPE 2 |
FIP |
|
CONNECTION TYPE 3 |
SAE 45 deg Male Flared |
|
DIMENSIONS |
1.88" L |
|
FOR USE WITH |
Aluminum, Brass, Copper, Steel Hydraulic Tubing That Can Be Flared |
|
FITTING TYPE |
90 deg Elbow |
|
SHAPE |
Tee |
|
PRESSURE RATING |
1400 psig |
|
TEMPERATURE RATING |
-65 to 250 deg F |
|
THREAD SIZE |
1/4-18 x 7/16-20 |
|
APPLICATIONS |
Ideal for hydraulic system, pneumatic system, gas system and HVAC |
|
BRAND |
Midland Industries |
SKU:10383

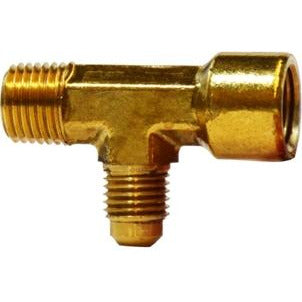

1/4 Male Iron Pipe x 1/4 Female Iron Pipe x 1/4 Male Flare Tee
- Regular price
- $12.82
- Sale price
- $12.82
