Description

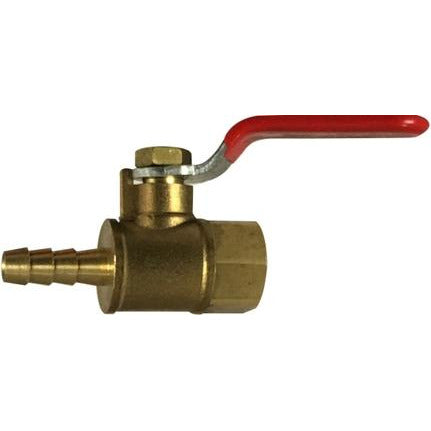

The 1/4 Female Iron Pipe x 1/4 Hose Barb Forged Mini Ball Valve is a compact, high-strength shutoff valve designed for controlling fluid and gas flow in low to medium-pressure applications. With a forged brass body, it provides enhanced durability and leak resistance. The female iron pipe (FIP) threaded inlet allows secure attachment to a rigid pipe system, while the hose barb outlet ensures a tight connection for flexible tubing. Its quarter-turn operation allows for quick and easy shutoff.


Specification Value
TYPE Female Iron Pipe Hose Barb Forged Mini Ball Valve
DESIGN Hose barb outlet, ensures a tight fit for flexible tubing with hose clamps
WEIGHT 0.110
BALL MATERIAL Brass provides higher durability
BODY MATERIAL Forged Brass
CONNECTION TYPE FIP x Hose Barbed
DIMENSIONS 2.87" OAL x 1.55" H
DOMESTIC/IMPORT Import
HANDLE MATERIAL Steel
INLET TO OUTLET LENGTH 1.97"
NOMINAL SIZE 1/4"
OPERATOR TYPE 180 deg Operational Handle
PRESSURE RATING 200 psi WOG
SEAT MATERIAL PTFE
STEM MATERIAL Brass
TEMPERATURE RATING -20 to 250 deg F
TRIM MATERIAL Steel Screw/NBR O-Ring/Steel Nut
THREAD SIZE 1/4-18
ADDITIONAL DIMENSION C        0.73
APPLICATIONS  Ideal for Plumbing & Water Systems, Compressed Air & Pneumatic Systems, Fuel & Oil Lines, HVAC & Refrigeration, Agriculture & Irrigation, Chemical Processing
BRAND Midland Industries

Description
The 1/4 Female Iron Pipe x 1/4 Hose Barb Forged Mini Ball Valve is a compact, high-strength shutoff valve designed for controlling fluid and gas flow in low to medium-pressure applications. With a forged brass body, it provides enhanced durability and leak resistance. The female iron pipe (FIP) threaded inlet allows secure attachment to a rigid pipe system, while the hose barb outlet ensures a tight connection for flexible tubing. Its quarter-turn operation allows for quick and easy shutoff.


Specification Value
TYPE Female Iron Pipe Hose Barb Forged Mini Ball Valve
DESIGN Hose barb outlet, ensures a tight fit for flexible tubing with hose clamps
WEIGHT 0.110
BALL MATERIAL Brass provides higher durability
BODY MATERIAL Forged Brass
CONNECTION TYPE FIP x Hose Barbed
DIMENSIONS 2.87" OAL x 1.55" H
DOMESTIC/IMPORT Import
HANDLE MATERIAL Steel
INLET TO OUTLET LENGTH 1.97"
NOMINAL SIZE 1/4"
OPERATOR TYPE 180 deg Operational Handle
PRESSURE RATING 200 psi WOG
SEAT MATERIAL PTFE
STEM MATERIAL Brass
TEMPERATURE RATING -20 to 250 deg F
TRIM MATERIAL Steel Screw/NBR O-Ring/Steel Nut
THREAD SIZE 1/4-18
ADDITIONAL DIMENSION C        0.73
APPLICATIONS  Ideal for Plumbing & Water Systems, Compressed Air & Pneumatic Systems, Fuel & Oil Lines, HVAC & Refrigeration, Agriculture & Irrigation, Chemical Processing
BRAND Midland Industries

Midland Industries by Midland Industries

944136

1/4 Female Iron Pipe x 1/4 Hose Barb Forged Mini Ball Valve

$26.93
$26.93
