Description

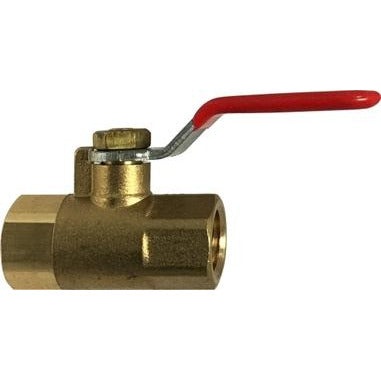

The 1/4 Female Iron Pipe x 1/4 Female Iron Pipe Forged Mini Ball Valve is a compact, high-strength shutoff valve designed for precise control of fluids and gases in various industrial and commercial applications. Made from forged brass or stainless steel, this valve offers superior durability and higher pressure resistance than standard cast models. The female iron pipe (FIP) threaded connections allow for secure and leak-free installation, while the quarter-turn operation ensures quick and efficient shutoff.


Specification Value
TYPE Female Iron Pipe Forged Mini Ball Valve
DESIGN Quarter-turn handle for fast and easy shutoff operation
WEIGHT 0.160
BALL MATERIAL Brass for affordability, durability and smooth operation
BODY MATERIAL Forged Brass
CONNECTION TYPE FIP x FIP
DIMENSIONS 2.8" OAL x 1.42" H
DOMESTIC/IMPORT Import
HANDLE MATERIAL Steel
INLET TO OUTLET LENGTH 1.53"
NOMINAL SIZE 1/4"
OPERATOR TYPE 180 deg Operational Handle
PRESSURE RATING 200 psi WOG
SEAT MATERIAL PTFE
STEM MATERIAL Brass
TEMPERATURE RATING -20 to 250 deg F
TRIM MATERIAL Steel Screw/NBR O-Ring/Steel Nut
THREAD SIZE 1/4-18
ADDITIONAL DIMENSION C        0.73
APPLICATIONS Ideal for Plumbing & Water Systems, Compressed Air & Pneumatic Systems, Fuel & Oil Lines, HVAC & Refrigeration, Gas & Chemical Processing, High-Pressure Industrial Use
BRAND Midland Industries

Description
The 1/4 Female Iron Pipe x 1/4 Female Iron Pipe Forged Mini Ball Valve is a compact, high-strength shutoff valve designed for precise control of fluids and gases in various industrial and commercial applications. Made from forged brass or stainless steel, this valve offers superior durability and higher pressure resistance than standard cast models. The female iron pipe (FIP) threaded connections allow for secure and leak-free installation, while the quarter-turn operation ensures quick and efficient shutoff.


Specification Value
TYPE Female Iron Pipe Forged Mini Ball Valve
DESIGN Quarter-turn handle for fast and easy shutoff operation
WEIGHT 0.160
BALL MATERIAL Brass for affordability, durability and smooth operation
BODY MATERIAL Forged Brass
CONNECTION TYPE FIP x FIP
DIMENSIONS 2.8" OAL x 1.42" H
DOMESTIC/IMPORT Import
HANDLE MATERIAL Steel
INLET TO OUTLET LENGTH 1.53"
NOMINAL SIZE 1/4"
OPERATOR TYPE 180 deg Operational Handle
PRESSURE RATING 200 psi WOG
SEAT MATERIAL PTFE
STEM MATERIAL Brass
TEMPERATURE RATING -20 to 250 deg F
TRIM MATERIAL Steel Screw/NBR O-Ring/Steel Nut
THREAD SIZE 1/4-18
ADDITIONAL DIMENSION C        0.73
APPLICATIONS Ideal for Plumbing & Water Systems, Compressed Air & Pneumatic Systems, Fuel & Oil Lines, HVAC & Refrigeration, Gas & Chemical Processing, High-Pressure Industrial Use
BRAND Midland Industries

Midland Industries by Midland Industries

944116

1/4 Female Iron Pipe x 1/4 Female Iron Pipe Forged Mini Ball Valve

$19.47
$19.47
