The 1/4 x Close Black Steel Nipple is a short, threaded pipe fitting with NPT male threads on both ends, made from black steel for durability and industrial applications. The close length design means there is minimal spacing between the threaded ends, making it ideal for compact piping installations. Made from high-quality steel for durability and cost-effective for industrial piping and ensures mechanical strength and pressure
| Specification | Details |
|---|---|
| TYPE | Close Black Steel Nipple |
| DESIGN | Close Length Design for tight, compact installations |
| MATERIAL | Steel provides strength and durability |
| MATERIAL CONSTRUCTION | Steel |
| WEIGHT (LBS) | 0.020 |
| APPROXIMATE WEIGHT (LBS) | 0.04 |
| BOXCASE | 50/600 |
| CONNECTION SIZE 1 | 1/4" |
| CONNECTION SIZE 2 | 1/4" |
| CONNECTION TYPE | MPT|MPT |
| CONNECTION TYPE 1 | MPT |
| CONNECTION TYPE 2 | MPT |
| DIMENSIONS STANDARDS | ANSI B1.20.1 |
| FINISH | Black |
| DIAMETER | 1/4" |
| FITTING TYPE | Nipple |
| LENGTH | 7/8" |
| PRESSURE CLASS | 150 lb |
| PRESSURE RATING | 700 psi |
| SCHEDULE RATING | SCH 40 |
| TEMPERATURE RATING | -200 to 150 deg F |
| THREAD LENGTH | 0.39" |
| WALL THICKNESS | 0.068" |
| THREAD SIZE | 1/4-18 |
| APPLICATIONS |
Ideal for Gas & Oil Piping, Low-Pressure Water Lines, Air & Pneumatic Systems, Fire Protection Systems, Steam & Boiler Systems, General Industrial Use |
| BRAND | Midland Industries |
Link to Midland Industries Catalog
The 1/4 x Close Black Steel Nipple is a short, threaded pipe fitting with NPT male threads on both ends, made from black steel for durability and industrial applications. The close length design means there is minimal spacing between the threaded ends, making it ideal for compact piping installations. Made from high-quality steel for durability and cost-effective for industrial piping and ensures mechanical strength and pressure
| Specification | Details |
|---|---|
| TYPE | Close Black Steel Nipple |
| DESIGN | Close Length Design for tight, compact installations |
| MATERIAL | Steel provides strength and durability |
| MATERIAL CONSTRUCTION | Steel |
| WEIGHT (LBS) | 0.020 |
| APPROXIMATE WEIGHT (LBS) | 0.04 |
| BOXCASE | 50/600 |
| CONNECTION SIZE 1 | 1/4" |
| CONNECTION SIZE 2 | 1/4" |
| CONNECTION TYPE | MPT|MPT |
| CONNECTION TYPE 1 | MPT |
| CONNECTION TYPE 2 | MPT |
| DIMENSIONS STANDARDS | ANSI B1.20.1 |
| FINISH | Black |
| DIAMETER | 1/4" |
| FITTING TYPE | Nipple |
| LENGTH | 7/8" |
| PRESSURE CLASS | 150 lb |
| PRESSURE RATING | 700 psi |
| SCHEDULE RATING | SCH 40 |
| TEMPERATURE RATING | -200 to 150 deg F |
| THREAD LENGTH | 0.39" |
| WALL THICKNESS | 0.068" |
| THREAD SIZE | 1/4-18 |
| APPLICATIONS |
Ideal for Gas & Oil Piping, Low-Pressure Water Lines, Air & Pneumatic Systems, Fire Protection Systems, Steam & Boiler Systems, General Industrial Use |
| BRAND | Midland Industries |
Link to Midland Industries Catalog
SKU:57020

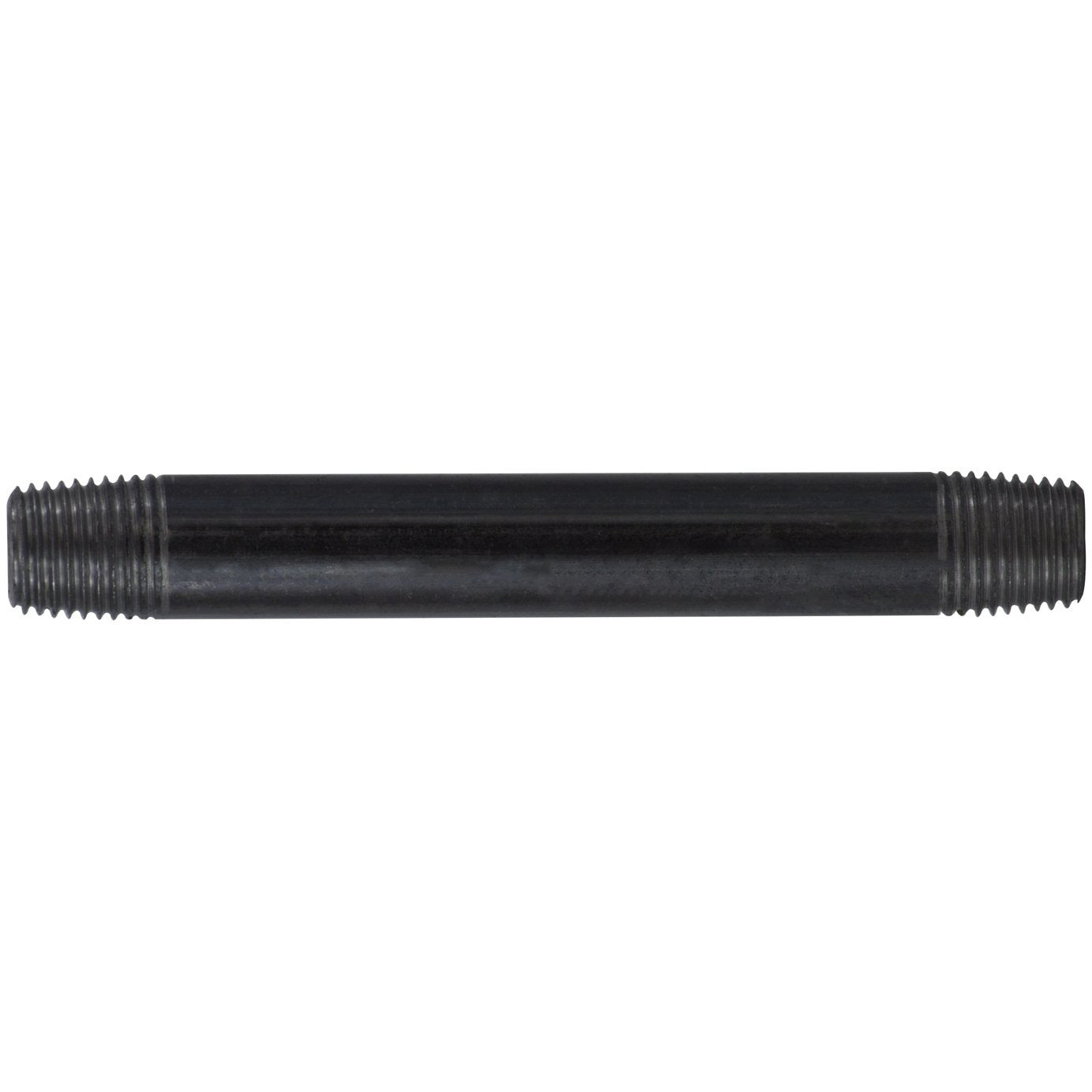

1/4 x Close Black Steel Nipple
- Regular price
- $2.91
- Sale price
- $2.91
