The 1/4 x 1/8 Tube x Female Elbow is a compact, 90-degree fitting designed to connect tubing to a female-threaded port. The 90-degree turn in piping or tubing systems, perfect for tight spaces. Can be a push-to-connect, compression, or barbed style depending on the specific application. Ensures a secure, leak-resistant connection when properly sealed with thread tape or sealant.
| Specification | Details |
|---|---|
| TYPE | Tube Female Elbow |
| DESIGN |
90-Degree Elbow Design allows for smooth directional changes in tubing systems, optimizing space and flow efficiency. |
| MATERIAL |
Brass provides corrosion resistance , leak-proof , high-pressure and secure tube retention |
| MATERIAL CONSTRUCTION | Brass |
|
WEIGHT (lbs) |
0.040 lb |
| CONNECTION SIZE 1 | 1/4" |
| CONNECTION SIZE 2 | 1/8" |
| CONNECTION TYPE | Barbed|FPT |
| CONNECTION TYPE 1 | Hose Barbed |
| CONNECTION TYPE 2 | FPT |
| FITTING TYPE | 90 deg Elbow |
| FOR USE WITH | Plastic Tubing |
| MAXIMUM OPERATING PRESSURE | 150 psi |
| OPERATING TEMPERATURE | -65 to 90 deg F |
| APPLICATIONS |
Ideal for
Pneumatic systems, Fluid systems, HVAC systems and Irrigation |
| THREAD SIZE | 1/8-27 |
| NOTE | TUBE O.D. (I.D.) X FEMALE PIPE |
| BRAND | Midland Industries |
The 1/4 x 1/8 Tube x Female Elbow is a compact, 90-degree fitting designed to connect tubing to a female-threaded port. The 90-degree turn in piping or tubing systems, perfect for tight spaces. Can be a push-to-connect, compression, or barbed style depending on the specific application. Ensures a secure, leak-resistant connection when properly sealed with thread tape or sealant.
| Specification | Details |
|---|---|
| TYPE | Tube Female Elbow |
| DESIGN |
90-Degree Elbow Design allows for smooth directional changes in tubing systems, optimizing space and flow efficiency. |
| MATERIAL |
Brass provides corrosion resistance , leak-proof , high-pressure and secure tube retention |
| MATERIAL CONSTRUCTION | Brass |
|
WEIGHT (lbs) |
0.040 lb |
| CONNECTION SIZE 1 | 1/4" |
| CONNECTION SIZE 2 | 1/8" |
| CONNECTION TYPE | Barbed|FPT |
| CONNECTION TYPE 1 | Hose Barbed |
| CONNECTION TYPE 2 | FPT |
| FITTING TYPE | 90 deg Elbow |
| FOR USE WITH | Plastic Tubing |
| MAXIMUM OPERATING PRESSURE | 150 psi |
| OPERATING TEMPERATURE | -65 to 90 deg F |
| APPLICATIONS |
Ideal for
Pneumatic systems, Fluid systems, HVAC systems and Irrigation |
| THREAD SIZE | 1/8-27 |
| NOTE | TUBE O.D. (I.D.) X FEMALE PIPE |
| BRAND | Midland Industries |
SKU:21133

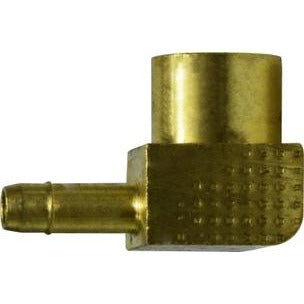

1/4 x 1/8 Tube x Female Elbow
- Regular price
- $20.79
- Sale price
- $20.79
