The 1/4 x 1/8 Male Flare x Male Iron Pipe Ball Check is designed to prevent backflow in fluid or gas systems. The ball mechanism inside ensures one-way flow, while blocking any reverse flow that could damage components or disrupt operations. The ball check ensures that fluid or gas can only flow in one direction, preventing backflow and protecting other system components from contamination or damage.
| Specification | Value |
|---|---|
| TYPE | Male Flare x Male Iron Pipe Ball Check |
| DESIGN | Leak-Proof Design, precision-machined for a secure seal. |
| MATERIAL |
Brass for durability and corrosion resistance. |
| WEIGHT (lbs) | 0.040 |
| CONNECTION TYPE | SAE 45 deg Male Flared x MIP |
| DIMENSIONS | 1.06" L |
| DOMESTIC/IMPORT | Domestic |
| INLET TO OUTLET LENGTH | 1.06" |
| HEX SIZE | 0.43" |
| NOMINAL SIZE | 1/4 x 1/8" |
| PRESSURE RATING | 1400 psi |
| TEMPERATURE RATING | -65 to 250 deg F |
| BULLETS | Note: Ball & Spring position may be reversed to change flow/check position. Min working pressure 3 PSI |
| APPLICATIONS |
Ideal for pneumatic system, hydraulic system, plumbing system, HVAC, fuel & oil systems. |
| BRAND | Midland Industries |
The 1/4 x 1/8 Male Flare x Male Iron Pipe Ball Check is designed to prevent backflow in fluid or gas systems. The ball mechanism inside ensures one-way flow, while blocking any reverse flow that could damage components or disrupt operations. The ball check ensures that fluid or gas can only flow in one direction, preventing backflow and protecting other system components from contamination or damage.
| Specification | Value |
|---|---|
| TYPE | Male Flare x Male Iron Pipe Ball Check |
| DESIGN | Leak-Proof Design, precision-machined for a secure seal. |
| MATERIAL |
Brass for durability and corrosion resistance. |
| WEIGHT (lbs) | 0.040 |
| CONNECTION TYPE | SAE 45 deg Male Flared x MIP |
| DIMENSIONS | 1.06" L |
| DOMESTIC/IMPORT | Domestic |
| INLET TO OUTLET LENGTH | 1.06" |
| HEX SIZE | 0.43" |
| NOMINAL SIZE | 1/4 x 1/8" |
| PRESSURE RATING | 1400 psi |
| TEMPERATURE RATING | -65 to 250 deg F |
| BULLETS | Note: Ball & Spring position may be reversed to change flow/check position. Min working pressure 3 PSI |
| APPLICATIONS |
Ideal for pneumatic system, hydraulic system, plumbing system, HVAC, fuel & oil systems. |
| BRAND | Midland Industries |
SKU:10131

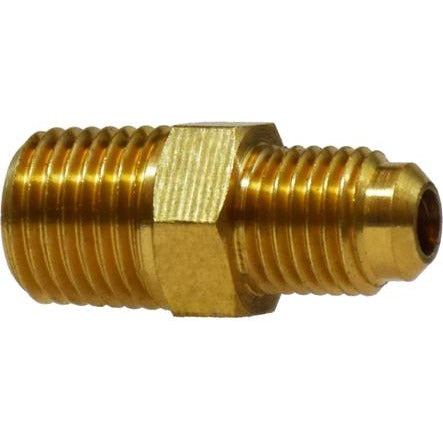

1/4 x 1/8 Male Flare x Male Iron Pipe Ball Check
- Regular price
- $51.35
- Sale price
- $51.35
