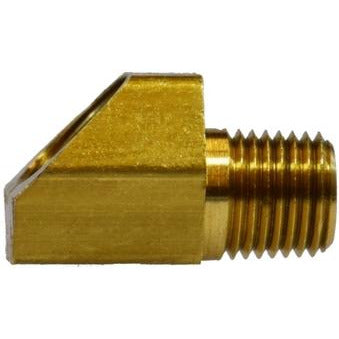

The 1/4" x 1/8" Female Inverted Flare x Male Iron Pipe 45° Elbow is a robust fitting designed to change the direction of fluid or gas flow at a 45-degree angle. One end features a 1/4" female inverted flare connection, providing a secure, leak-resistant seal when paired with flare nuts or other flare fittings. The opposite end has a 1/8" male iron pipe thread, enabling easy connection to female-threaded components. This fitting is commonly used in hydraulic, pneumatic, and fluid transfer systems, offering reliable performance and space-efficient directional control in tight spaces.
| Specification | Details |
|---|---|
| TYPE | Female Inverted Flare X Male Iron Pipe 45 Elbow |
| DESIGN | 45° Elbow Design for smooth redirection of fluid or gas flow in tight spaces and ensuring a secure, leak-proof attachment. |
| MATERIAL CONSTRUCTION | Brass |
| MATERIAL |
Brass corrosion resistance, ease of machining, and reliable performance in fluid and gas system. |
| ADDITIONAL INFORMATION | 0.27 x 0.58" Center to End |
| TUBE WALL | 0.03" |
|
WEIGHT (LBS) |
0.40 |
| CONNECTION SIZE 1 | 1/4" |
| CONNECTION SIZE 1 | 1/8" |
| CONNECTION TYPE | Female Inverted Flared|MNPT |
| CONNECTION TYPE 1 | Female Inverted Flared |
| CONNECTION TYPE 2 | MNPTF |
| DIMENSIONS | 1.26" L |
| HEX SIZE | 0.56" |
| FITTING TYPE | 45 deg Elbow |
| FOR USE WITH | Aluminum, Brass, Copper, Steel Hydraulic Tubing That Can Be Flared |
| THREAD SIZE | 7/16-24 x 1/8-27 |
| PRESSURE RATING | 1400 psi |
| TEMPERATURE RATING |
-65 to 250 deg F |
| SAE# |
040302 |
| APPLICATIONS | Ideal for Hydraulic, Pneumatic and HVAC Systems |
| BRAND | Midland Industries |
The 1/4" x 1/8" Female Inverted Flare x Male Iron Pipe 45° Elbow is a robust fitting designed to change the direction of fluid or gas flow at a 45-degree angle. One end features a 1/4" female inverted flare connection, providing a secure, leak-resistant seal when paired with flare nuts or other flare fittings. The opposite end has a 1/8" male iron pipe thread, enabling easy connection to female-threaded components. This fitting is commonly used in hydraulic, pneumatic, and fluid transfer systems, offering reliable performance and space-efficient directional control in tight spaces.
| Specification | Details |
|---|---|
| TYPE | Female Inverted Flare X Male Iron Pipe 45 Elbow |
| DESIGN | 45° Elbow Design for smooth redirection of fluid or gas flow in tight spaces and ensuring a secure, leak-proof attachment. |
| MATERIAL CONSTRUCTION | Brass |
| MATERIAL |
Brass corrosion resistance, ease of machining, and reliable performance in fluid and gas system. |
| ADDITIONAL INFORMATION | 0.27 x 0.58" Center to End |
| TUBE WALL | 0.03" |
|
WEIGHT (LBS) |
0.40 |
| CONNECTION SIZE 1 | 1/4" |
| CONNECTION SIZE 1 | 1/8" |
| CONNECTION TYPE | Female Inverted Flared|MNPT |
| CONNECTION TYPE 1 | Female Inverted Flared |
| CONNECTION TYPE 2 | MNPTF |
| DIMENSIONS | 1.26" L |
| HEX SIZE | 0.56" |
| FITTING TYPE | 45 deg Elbow |
| FOR USE WITH | Aluminum, Brass, Copper, Steel Hydraulic Tubing That Can Be Flared |
| THREAD SIZE | 7/16-24 x 1/8-27 |
| PRESSURE RATING | 1400 psi |
| TEMPERATURE RATING |
-65 to 250 deg F |
| SAE# |
040302 |
| APPLICATIONS | Ideal for Hydraulic, Pneumatic and HVAC Systems |
| BRAND | Midland Industries |
SKU:12073
1/4 x 1/8 Female Inverted Flare X Male Iron Pipe 45 Elbow
- Regular price
- $22.99
- Sale price
- $22.99
- Regular price
-
