The 1/4 x 1/4 Hose Barb x High Volume Ball Swivel Adapter is a superior-performance fitting designed for flexible and leak-proof connections in fluid and air systems. The hose barb end safely grips tubing, while the MIP threaded end allows for a strong and reliable connection to threaded part. Made from high-quality brass for excellent durability and corrosion resistance.
| Specification | Details |
|---|---|
| TYPE | Hose Barb x Male Iron Pipe Ball Swivel |
| DESIGN |
Ball Swivel design (for 360-degree rotation movement, reducing stress on hoses and increases flexibility) |
| MATERIAL | Brass (for durability, corrosion resistance ) |
| MATERIAL CONSTRUCTION | Brass |
|
WEIGHT (LBS) |
0.14 |
| ADDITIONAL INFORMATION | NBR O-Ring |
| CONNECTION SIZE 1 | 1/4" |
| CONNECTION SIZE 2 | 1/4" |
| CONNECTION TYPE | Barbed|MNPT |
| CONNECTION TYPE 1 | Hose Barbed |
| CONNECTION TYPE 2 | MNPTF |
| DIMENSIONS | 1.3" L |
| FITTING TYPE | Adapter |
| HEX SIZE | 0.81" |
| OPERATING TEMPERATURE | -40 to 160 deg F |
| MAXIMUM OPERATING PRESSURE | 150 psi |
| THREAD SIZE | 1/4-18 |
| BARB LENGTH | 0.94" |
| SHAPE | Straight/Connector |
| APPLICATIONS |
Ideal for HVAC Refrigeration, Fuel Oil Transfer, Industrial Air & Gas Lines, Automotive & Marine Applications, Pneumatic & Hydraulic Systems. |
| BRAND | Midland Industries |
The 1/4 x 1/4 Hose Barb x High Volume Ball Swivel Adapter is a superior-performance fitting designed for flexible and leak-proof connections in fluid and air systems. The hose barb end safely grips tubing, while the MIP threaded end allows for a strong and reliable connection to threaded part. Made from high-quality brass for excellent durability and corrosion resistance.
| Specification | Details |
|---|---|
| TYPE | Hose Barb x Male Iron Pipe Ball Swivel |
| DESIGN |
Ball Swivel design (for 360-degree rotation movement, reducing stress on hoses and increases flexibility) |
| MATERIAL | Brass (for durability, corrosion resistance ) |
| MATERIAL CONSTRUCTION | Brass |
|
WEIGHT (LBS) |
0.14 |
| ADDITIONAL INFORMATION | NBR O-Ring |
| CONNECTION SIZE 1 | 1/4" |
| CONNECTION SIZE 2 | 1/4" |
| CONNECTION TYPE | Barbed|MNPT |
| CONNECTION TYPE 1 | Hose Barbed |
| CONNECTION TYPE 2 | MNPTF |
| DIMENSIONS | 1.3" L |
| FITTING TYPE | Adapter |
| HEX SIZE | 0.81" |
| OPERATING TEMPERATURE | -40 to 160 deg F |
| MAXIMUM OPERATING PRESSURE | 150 psi |
| THREAD SIZE | 1/4-18 |
| BARB LENGTH | 0.94" |
| SHAPE | Straight/Connector |
| APPLICATIONS |
Ideal for HVAC Refrigeration, Fuel Oil Transfer, Industrial Air & Gas Lines, Automotive & Marine Applications, Pneumatic & Hydraulic Systems. |
| BRAND | Midland Industries |
SKU:28415

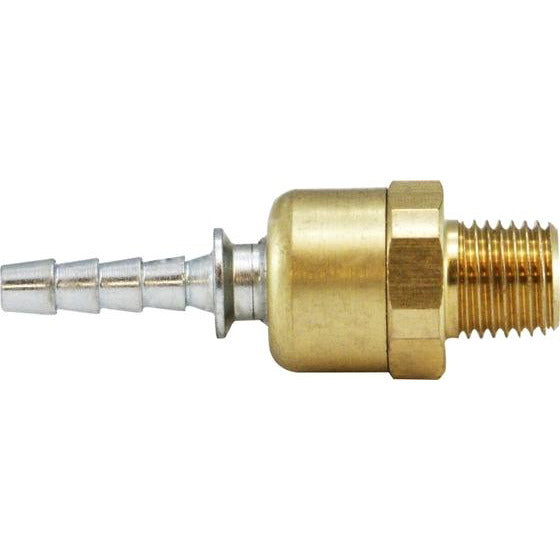

1/4 x 1/4 Hose Barb x Male Iron Pipe Ball Swivel
- Regular price
- $72.41
- Sale price
- $72.41
