The 1/4 X 1/16 Male Connector is a fluid handling fitting fabricate to connect a 1/4-inch male-threaded pipe or tube with a 1/16-inch fitting or component. Typically used in small-scale fluid systems, air systems, or instrumentation applications. Use for a compact and secure connection for joining pipes or components of varying sizes. Easy installation, leak resistant and made from high quality brass for lasting durability.
| Specification | Details |
|---|---|
| TYPE | Male Connector |
| DESIGN | Full flown compact design (to provide a full flow system in tight spaces) |
| MATERIAL | Brass for lasting durability, non-corrosive. |
| MATERIAL CONSTRUCTION | Brass |
|
WEIGHT (lbs) |
0.060 |
| CONNECTION SIZE 1 | 1/4" |
| CONNECTION SIZE 2 | 1/16" |
| CONNECTION TYPE | Tube|MNPT |
| CONNECTION TYPE 1 | Tube OD |
| CONNECTION TYPE 2 | Male NPTF |
| FITTING TYPE | Connector |
| HEX SIZE | 0.43" |
| TEMPERATURE RATING | -10 to 200 deg F |
| THREAD SIZE | 1/16-27 |
| APPLICATIONS | Ideal for instrumentation, fluid and air control system |
| BRAND | Midland Industries |
The 1/4 X 1/16 Male Connector is a fluid handling fitting fabricate to connect a 1/4-inch male-threaded pipe or tube with a 1/16-inch fitting or component. Typically used in small-scale fluid systems, air systems, or instrumentation applications. Use for a compact and secure connection for joining pipes or components of varying sizes. Easy installation, leak resistant and made from high quality brass for lasting durability.
| Specification | Details |
|---|---|
| TYPE | Male Connector |
| DESIGN | Full flown compact design (to provide a full flow system in tight spaces) |
| MATERIAL | Brass for lasting durability, non-corrosive. |
| MATERIAL CONSTRUCTION | Brass |
|
WEIGHT (lbs) |
0.060 |
| CONNECTION SIZE 1 | 1/4" |
| CONNECTION SIZE 2 | 1/16" |
| CONNECTION TYPE | Tube|MNPT |
| CONNECTION TYPE 1 | Tube OD |
| CONNECTION TYPE 2 | Male NPTF |
| FITTING TYPE | Connector |
| HEX SIZE | 0.43" |
| TEMPERATURE RATING | -10 to 200 deg F |
| THREAD SIZE | 1/16-27 |
| APPLICATIONS | Ideal for instrumentation, fluid and air control system |
| BRAND | Midland Industries |
SKU:20039

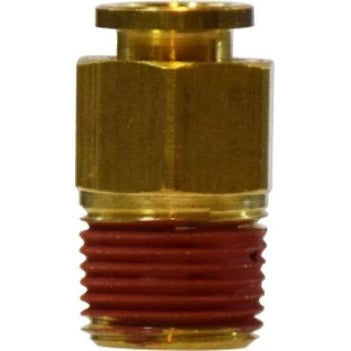

1/4 X 1/16 Male Connector
- Regular price
- $17.87
- Sale price
- $17.87
