The 1/4 Single Barb x 1/8 Female Iron Pipe Adapter is designed to connect flexible tubing to a female-threaded pipe fitting. This adapter allows for a secure, leak-resistant connection between soft hoses (such as PVC, rubber, or silicone) and rigid piping systems. Ideal for fluid, air, and gas transfer applications.
| Specification | Details |
|---|---|
| TYPE | Single Barb Female Iron Pipe Adapter |
| DESIGN |
Single Barb ensures a tight grip on tubing, reducing the risk of leaks or disconnections. |
| MATERIAL |
Brass provides corrosion resistance , leak-proof , high-pressure and secure tube retention |
| MATERIAL CONSTRUCTION | Brass |
|
WEIGHT (lbs) |
0.020 lb |
| CONNECTION SIZE 1 | 1/4" |
| CONNECTION SIZE 2 | 1/8" |
| CONNECTION TYPE | Tube|FIP |
| CONNECTION TYPE 1 | Tube OD |
| CONNECTION TYPE 2 | FIP |
| DIMENSIONS | 1/8" ID |
| FITTING TYPE | Adapter |
| SHAPE | Straight/Connector |
| FOR USE WITH | Polythene Tubing |
| MAXIMUM OPERATING PRESSURE | 150 psi |
| OPERATING TEMPERATURE | -65 to 90 deg F |
| THREAD SIZE | 1/8-27 |
| NOTE | TUBE O.D. (TUBE I.D.) X FEMALE PIPE |
| APPLICATIONS |
Ideal for
Pneumatic systems, Fluid systems, HVAC systems and Irrigation |
| BRAND | Midland Industries |
The 1/4 Single Barb x 1/8 Female Iron Pipe Adapter is designed to connect flexible tubing to a female-threaded pipe fitting. This adapter allows for a secure, leak-resistant connection between soft hoses (such as PVC, rubber, or silicone) and rigid piping systems. Ideal for fluid, air, and gas transfer applications.
| Specification | Details |
|---|---|
| TYPE | Single Barb Female Iron Pipe Adapter |
| DESIGN |
Single Barb ensures a tight grip on tubing, reducing the risk of leaks or disconnections. |
| MATERIAL |
Brass provides corrosion resistance , leak-proof , high-pressure and secure tube retention |
| MATERIAL CONSTRUCTION | Brass |
|
WEIGHT (lbs) |
0.020 lb |
| CONNECTION SIZE 1 | 1/4" |
| CONNECTION SIZE 2 | 1/8" |
| CONNECTION TYPE | Tube|FIP |
| CONNECTION TYPE 1 | Tube OD |
| CONNECTION TYPE 2 | FIP |
| DIMENSIONS | 1/8" ID |
| FITTING TYPE | Adapter |
| SHAPE | Straight/Connector |
| FOR USE WITH | Polythene Tubing |
| MAXIMUM OPERATING PRESSURE | 150 psi |
| OPERATING TEMPERATURE | -65 to 90 deg F |
| THREAD SIZE | 1/8-27 |
| NOTE | TUBE O.D. (TUBE I.D.) X FEMALE PIPE |
| APPLICATIONS |
Ideal for
Pneumatic systems, Fluid systems, HVAC systems and Irrigation |
| BRAND | Midland Industries |
SKU:21043

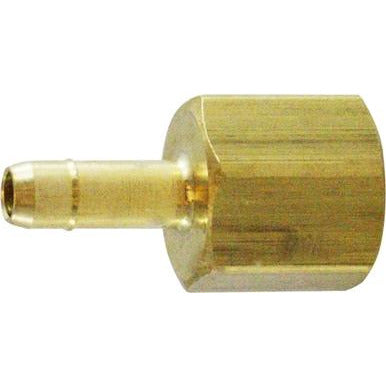

1/4 Single Barb x 1/8 Female Iron Pipe Adapter
- Regular price
- $33.09
- Sale price
- $33.09
- Regular price
-
