Description

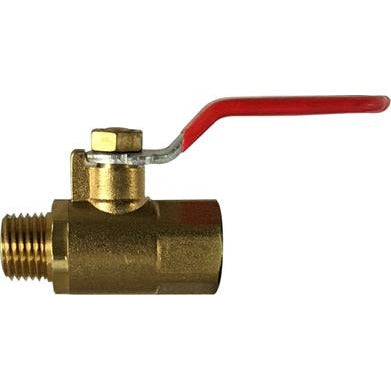

The 1/4 Mini Male x Female Ball Valve is a compact, durable shutoff valve designed for precise fluid and gas flow control in various applications, including plumbing, pneumatic systems, fuel lines, and industrial uses. Featuring a male iron pipe (MIP) threaded inlet and a female iron pipe (FIP) threaded outlet, this valve provides easy and flexible inline installation. Its quarter-turn operation ensures quick shutoff, while high-quality sealing materials prevent leaks.


Specification Value
TYPE Mini Ball Valve
DESIGN Compact & lightweight, ideal for tight spaces
WEIGHT 0.100
BALL MATERIAL Brass for corrosion resistance and durability
BODY MATERIAL Forged Brass
CONNECTION TYPE MIP x FIP
DOMESTIC/IMPORT Import
DIMENSIONS 3" OAL x 1.46" H
DISC MATERIAL Brass
FINISH Chrome-plated
HANDLE MATERIAL NBR 80
INLET TO OUTLET LENGTH 1.07"
NOMINAL SIZE 1/4"
OPERATOR TYPE 180 deg Operational Handle
PRESSURE RATING 200 psi WOG
SEAT MATERIAL PTFE
STEM MATERIAL Brass
TEMPERATURE RATING 20 to 250 deg F
THREAD SIZE 1/4-18
TRIM MATERIAL Steel Screw/NBR O-Ring/Steel Nut
ADDITIONAL DIMENSION C        0.73
APPLICATIONS Ideal for Plumbing & Water Systems, Compressed Air & Pneumatic Systems, Fuel & Oil Lines, HVAC & Refrigeration,  Gas & Chemical Processing, Industrial & Mechanical Systems
BRAND Midland Industries

Description
The 1/4 Mini Male x Female Ball Valve is a compact, durable shutoff valve designed for precise fluid and gas flow control in various applications, including plumbing, pneumatic systems, fuel lines, and industrial uses. Featuring a male iron pipe (MIP) threaded inlet and a female iron pipe (FIP) threaded outlet, this valve provides easy and flexible inline installation. Its quarter-turn operation ensures quick shutoff, while high-quality sealing materials prevent leaks.


Specification Value
TYPE Mini Ball Valve
DESIGN Compact & lightweight, ideal for tight spaces
WEIGHT 0.100
BALL MATERIAL Brass for corrosion resistance and durability
BODY MATERIAL Forged Brass
CONNECTION TYPE MIP x FIP
DOMESTIC/IMPORT Import
DIMENSIONS 3" OAL x 1.46" H
DISC MATERIAL Brass
FINISH Chrome-plated
HANDLE MATERIAL NBR 80
INLET TO OUTLET LENGTH 1.07"
NOMINAL SIZE 1/4"
OPERATOR TYPE 180 deg Operational Handle
PRESSURE RATING 200 psi WOG
SEAT MATERIAL PTFE
STEM MATERIAL Brass
TEMPERATURE RATING 20 to 250 deg F
THREAD SIZE 1/4-18
TRIM MATERIAL Steel Screw/NBR O-Ring/Steel Nut
ADDITIONAL DIMENSION C        0.73
APPLICATIONS Ideal for Plumbing & Water Systems, Compressed Air & Pneumatic Systems, Fuel & Oil Lines, HVAC & Refrigeration,  Gas & Chemical Processing, Industrial & Mechanical Systems
BRAND Midland Industries

Midland Industries by Midland Industries

944101

1/4 Mini Male x Female Ball Valve

$27.25
$27.25
