The 1/4 In-line Check Valve is a one-way flow control valve designed to prevent backflow in fluid and air systems. Its compact, durable construction ensures reliable performance in hydraulic, pneumatic, fuel, and water applications. The valve features a spring-loaded mechanism that allows flow in one direction while automatically sealing to prevent reverse flow. It is ideal for maintaining system pressure, protecting pumps, and ensuring efficient operation in high-pressure and industrial environments.
| Specification | Value |
|---|---|
| TYPE | In-line Check Valve |
| DESIGN |
2-Way Flow Control allows precise on/off control for optimal system efficiency |
| MATERIAL | Brass highly durable and resistant to corrosion |
| MATERIAL CONSTRUCTION | Forged Brass |
| ADDITIONAL INFORMATION | Stainless Steel Spring, Bronze Poppet, 1 in Length, 2.29 in Dia, 1/4-18 Thread Size |
| WEIGHT (LBS) | 0.270 |
|
CONNECTION TYPE |
FNPT |
| DISC MATERIAL | Brass |
| DOMESTIC/IMPORT | Import |
| INLET TO OUTLET LENGTH | 1" |
| LEAD FREE/CONTAINS LEAD | Contains Lead |
| NOMINAL SIZE | 1/4" |
| OPENING SIZE | 1/4" |
| PRESSURE RATING | 200 psi WOG |
| TEMPERATURE RATING | 14 to 248 deg F |
| BOXCASE | 24/192 |
| APPLICATIONS | Ideal for Hydraulic Systems,Pneumatic Systems, Fuel & Gas Systems, Water & Fluid Processing, Medical & Laboratory Equipment |
| BRAND | Midland Industries |
The 1/4 In-line Check Valve is a one-way flow control valve designed to prevent backflow in fluid and air systems. Its compact, durable construction ensures reliable performance in hydraulic, pneumatic, fuel, and water applications. The valve features a spring-loaded mechanism that allows flow in one direction while automatically sealing to prevent reverse flow. It is ideal for maintaining system pressure, protecting pumps, and ensuring efficient operation in high-pressure and industrial environments.
| Specification | Value |
|---|---|
| TYPE | In-line Check Valve |
| DESIGN |
2-Way Flow Control allows precise on/off control for optimal system efficiency |
| MATERIAL | Brass highly durable and resistant to corrosion |
| MATERIAL CONSTRUCTION | Forged Brass |
| ADDITIONAL INFORMATION | Stainless Steel Spring, Bronze Poppet, 1 in Length, 2.29 in Dia, 1/4-18 Thread Size |
| WEIGHT (LBS) | 0.270 |
|
CONNECTION TYPE |
FNPT |
| DISC MATERIAL | Brass |
| DOMESTIC/IMPORT | Import |
| INLET TO OUTLET LENGTH | 1" |
| LEAD FREE/CONTAINS LEAD | Contains Lead |
| NOMINAL SIZE | 1/4" |
| OPENING SIZE | 1/4" |
| PRESSURE RATING | 200 psi WOG |
| TEMPERATURE RATING | 14 to 248 deg F |
| BOXCASE | 24/192 |
| APPLICATIONS | Ideal for Hydraulic Systems,Pneumatic Systems, Fuel & Gas Systems, Water & Fluid Processing, Medical & Laboratory Equipment |
| BRAND | Midland Industries |
SKU:944428

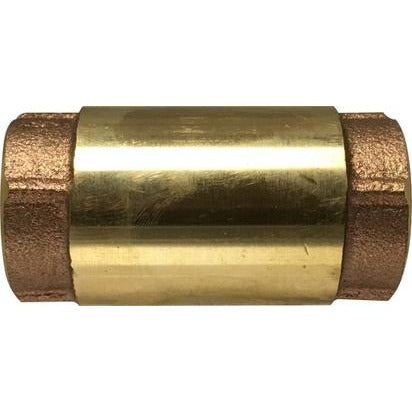

1/4 In-line Check Valve
- Regular price
- $43.69
- Sale price
- $43.69
