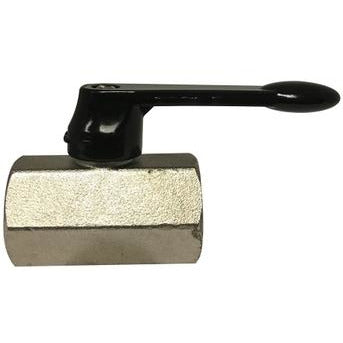

The 1/4 Female x Female Mini Ball Valve Lever Handle With Viton Seals is a compact, precision-engineered shutoff valve designed for controlling fluid and gas flow. It features a lever handle for quick quarter-turn operation and Viton (FKM) seals, which provide excellent resistance to heat, fuels, oils, and many chemicals.
| Specification | Value |
|---|---|
| TYPE | Female x Female Mini Ball Valve Lever Handle With Viton Seals |
| DESIGN |
Compact & lightweight, ideal for space-limited installations |
| BALL MATERIAL | Chromium-Plated Brass |
| BODY MATERIAL | Forged Brass for durability in demanding environments |
| WEIGHT (LBS) | 0.200 |
| ADDITIONAL INFORMATION | Brass Ring Unit and Stern, Steel Screw, 1.99" Handle Center to Handle End, 1-1/2" Top to Bottom |
|
CONNECTION TYPE |
FPT x FPT |
| DIMENSIONS | 1.57" L |
| FINISH | Chrome-Plated |
| HANDLE MATERIAL | Alumzinc |
| INLET TO OUTLET LENGTH | 1.57" |
| LEAD-FREE/CONTAINS LEAD | Contains Lead |
| NOMINAL SIZE | 1/4" |
| OPENING SIZE | 0.31" |
| OPERATOR TYPE | 1/4 Turn Lever Handle |
| PRESSURE RATING | 450 psi |
| SEAL MATERIAL | PTFE/Fluoroelastomer |
| SEAT MATERIAL | PTFE |
| TEMPERATURE RATING | 32 to 176 deg F |
| THREAD SIZE | 1/4-18 |
| APPLICATIONS |
Ideal for Fuel & Oil Systems, Chemical Processing, Hydraulic & Pneumatic Systems, HVAC & Refrigeration, Gas & Water Lines, Pharmaceutical & Medical Equipment. |
| BRAND | Midland Industries |
The 1/4 Female x Female Mini Ball Valve Lever Handle With Viton Seals is a compact, precision-engineered shutoff valve designed for controlling fluid and gas flow. It features a lever handle for quick quarter-turn operation and Viton (FKM) seals, which provide excellent resistance to heat, fuels, oils, and many chemicals.
| Specification | Value |
|---|---|
| TYPE | Female x Female Mini Ball Valve Lever Handle With Viton Seals |
| DESIGN |
Compact & lightweight, ideal for space-limited installations |
| BALL MATERIAL | Chromium-Plated Brass |
| BODY MATERIAL | Forged Brass for durability in demanding environments |
| WEIGHT (LBS) | 0.200 |
| ADDITIONAL INFORMATION | Brass Ring Unit and Stern, Steel Screw, 1.99" Handle Center to Handle End, 1-1/2" Top to Bottom |
|
CONNECTION TYPE |
FPT x FPT |
| DIMENSIONS | 1.57" L |
| FINISH | Chrome-Plated |
| HANDLE MATERIAL | Alumzinc |
| INLET TO OUTLET LENGTH | 1.57" |
| LEAD-FREE/CONTAINS LEAD | Contains Lead |
| NOMINAL SIZE | 1/4" |
| OPENING SIZE | 0.31" |
| OPERATOR TYPE | 1/4 Turn Lever Handle |
| PRESSURE RATING | 450 psi |
| SEAL MATERIAL | PTFE/Fluoroelastomer |
| SEAT MATERIAL | PTFE |
| TEMPERATURE RATING | 32 to 176 deg F |
| THREAD SIZE | 1/4-18 |
| APPLICATIONS |
Ideal for Fuel & Oil Systems, Chemical Processing, Hydraulic & Pneumatic Systems, HVAC & Refrigeration, Gas & Water Lines, Pharmaceutical & Medical Equipment. |
| BRAND | Midland Industries |
SKU:46935L
1/4 Female x Female Mini Ball Valve Lever Handle With Viton Seals
- Regular price
- $8.32
- Sale price
- $8.32
