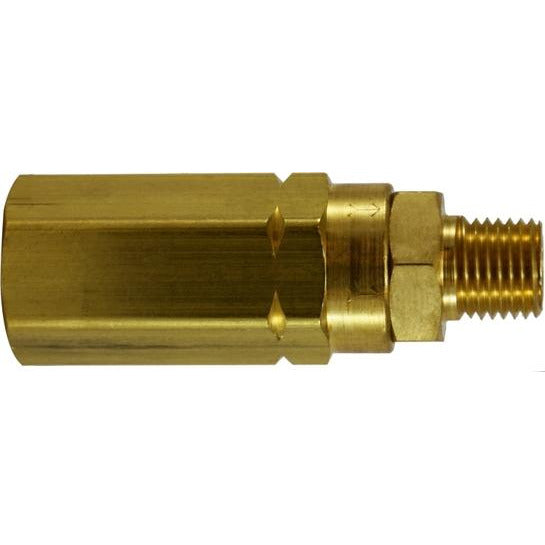

The 1/4 Female Iron Pipe X Male Iron Pipe Check Valve is a durable and reliable valve designed to prevent backflow in fluid and gas systems. it ensures a secure, leak-proof installation. This check valve allows fluid or gas to flow in only one direction, protecting your system from reverse flow and potential damage. Ideal for use in plumbing, hydraulic, pneumatic, and fluid handling applications, it offers reliable performance in a variety of settings.
| Specification | Details |
|---|---|
| TYPE | Female Iron Pipe X Male Iron Pipe |
| DESIGN | O-Ring poppet with seal bubble for tight operation |
| MATERIAL | Brass plug for reliability and durability |
|
WEIGHT (LBS) |
0.350 |
| CONNECTION TYPE |
FIP X FIP |
| DOMESTIC/IMPORT |
Domestic |
| FLOW RATE |
4 gpm |
| MEDIA |
Air, Water |
| NOMINAL SIZE |
1/4" |
| OPENING SIZE |
0.28" |
| PRESSURE RATING |
3000 psi |
| SEAL MATERIAL |
Bunan-N |
| TEMPERATURE RATING |
180 deg F |
| SHAPE |
Valve |
| NOTES |
• Operates in any position, and is available in mixed or matched end combinations. • Standard cracking pressure 1 p.s.i with a maximum operating pressure of 3000 p.s.i. and a maximum operating temperature of 180°F using Buna-N seals. • Buna-N seals standard, other seals available. • Guided 316 stainless steel ball + spring. • Fixed ringed seat prevents extrusion of seal. • Opening diameter .28 • Approximate CV 1.2 • Water G.P.M. @ 10 p.s.i. is 4.0 |
| APPLICATIONS | Ideal for Pneumatic, Fluid Handling and Oil and Fuel Systems |
| BRAND | Midland Industries |
The 1/4 Female Iron Pipe X Male Iron Pipe Check Valve is a durable and reliable valve designed to prevent backflow in fluid and gas systems. it ensures a secure, leak-proof installation. This check valve allows fluid or gas to flow in only one direction, protecting your system from reverse flow and potential damage. Ideal for use in plumbing, hydraulic, pneumatic, and fluid handling applications, it offers reliable performance in a variety of settings.
| Specification | Details |
|---|---|
| TYPE | Female Iron Pipe X Male Iron Pipe |
| DESIGN | O-Ring poppet with seal bubble for tight operation |
| MATERIAL | Brass plug for reliability and durability |
|
WEIGHT (LBS) |
0.350 |
| CONNECTION TYPE |
FIP X FIP |
| DOMESTIC/IMPORT |
Domestic |
| FLOW RATE |
4 gpm |
| MEDIA |
Air, Water |
| NOMINAL SIZE |
1/4" |
| OPENING SIZE |
0.28" |
| PRESSURE RATING |
3000 psi |
| SEAL MATERIAL |
Bunan-N |
| TEMPERATURE RATING |
180 deg F |
| SHAPE |
Valve |
| NOTES |
• Operates in any position, and is available in mixed or matched end combinations. • Standard cracking pressure 1 p.s.i with a maximum operating pressure of 3000 p.s.i. and a maximum operating temperature of 180°F using Buna-N seals. • Buna-N seals standard, other seals available. • Guided 316 stainless steel ball + spring. • Fixed ringed seat prevents extrusion of seal. • Opening diameter .28 • Approximate CV 1.2 • Water G.P.M. @ 10 p.s.i. is 4.0 |
| APPLICATIONS | Ideal for Pneumatic, Fluid Handling and Oil and Fuel Systems |
| BRAND | Midland Industries |
