The 1/4 Female Iron Pipe X Female Iron Pipe Check Valve is a reliable, compact valve designed to prevent backflow in fluid and gas systems. it ensures secure and leak-free installation. This check valve allows fluid or gas to flow in one direction only, protecting system from reverse flow and maintaining optimal pressure. Perfect for plumbing, pneumatic, and fluid handling applications, it offers efficient and reliable performance.
| Specification | Details |
|---|---|
| TYPE | Female Iron Pipe x Female Iron Pipe |
| DESIGN | O-Ring Design provide for tight and easy operation |
| MATERIAL | Brass for durability and reliability |
|
WEIGHT (LBS) |
0.360 |
| CONNECTION TYPE |
FIP X FIP |
| DOMESTIC/IMPORT |
Domestic |
| FLOW RATE |
4 gpm |
| MEDIA |
Air, Water |
| NOMINAL SIZE |
1/4" |
| OPENING SIZE |
0.28" |
| PRESSURE RATING |
3000 psi |
| SEAL MATERIAL |
Bunan-N |
| TEMPERATURE RATING |
180 deg F |
| SHAPE |
Valve |
| NOTES |
• Operates in any position, and is available in mixed or matched end combinations. • Standard cracking pressure 1 p.s.i with a maximum operating pressure of 3000 p.s.i. and a maximum operating temperature of 180°F using Buna-N seals. • Buna-N seals standard, other seals available. • Guided 316 stainless steel ball + spring. • Fixed ringed seat prevents extrusion of seal. • Opening diameter .28 • Approximate CV 1.2 • Water G.P.M. @ 10 p.s.i. is 4.0 |
| APPLICATIONS | Ideal for Pneumatic, Fluid Handling and Oil and Fuel Systems |
| BRAND | Midland Industries |
The 1/4 Female Iron Pipe X Female Iron Pipe Check Valve is a reliable, compact valve designed to prevent backflow in fluid and gas systems. it ensures secure and leak-free installation. This check valve allows fluid or gas to flow in one direction only, protecting system from reverse flow and maintaining optimal pressure. Perfect for plumbing, pneumatic, and fluid handling applications, it offers efficient and reliable performance.
| Specification | Details |
|---|---|
| TYPE | Female Iron Pipe x Female Iron Pipe |
| DESIGN | O-Ring Design provide for tight and easy operation |
| MATERIAL | Brass for durability and reliability |
|
WEIGHT (LBS) |
0.360 |
| CONNECTION TYPE |
FIP X FIP |
| DOMESTIC/IMPORT |
Domestic |
| FLOW RATE |
4 gpm |
| MEDIA |
Air, Water |
| NOMINAL SIZE |
1/4" |
| OPENING SIZE |
0.28" |
| PRESSURE RATING |
3000 psi |
| SEAL MATERIAL |
Bunan-N |
| TEMPERATURE RATING |
180 deg F |
| SHAPE |
Valve |
| NOTES |
• Operates in any position, and is available in mixed or matched end combinations. • Standard cracking pressure 1 p.s.i with a maximum operating pressure of 3000 p.s.i. and a maximum operating temperature of 180°F using Buna-N seals. • Buna-N seals standard, other seals available. • Guided 316 stainless steel ball + spring. • Fixed ringed seat prevents extrusion of seal. • Opening diameter .28 • Approximate CV 1.2 • Water G.P.M. @ 10 p.s.i. is 4.0 |
| APPLICATIONS | Ideal for Pneumatic, Fluid Handling and Oil and Fuel Systems |
| BRAND | Midland Industries |
SKU:46513

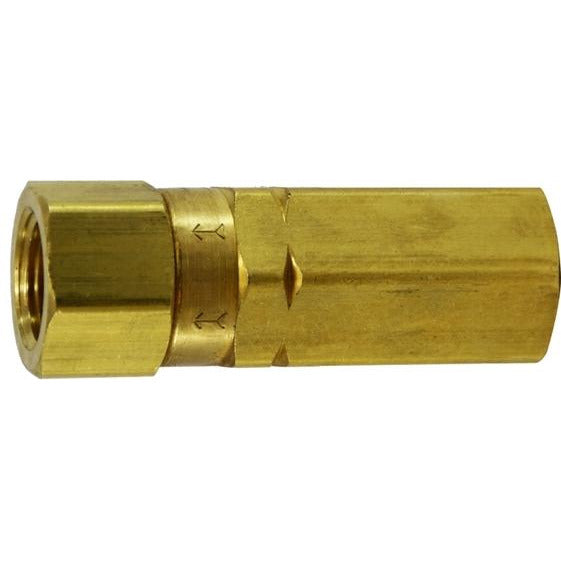

1/4 Female Iron Pipe X Female Iron Pipe Check Valve
- Regular price
- $96.49
- Sale price
- $96.49
