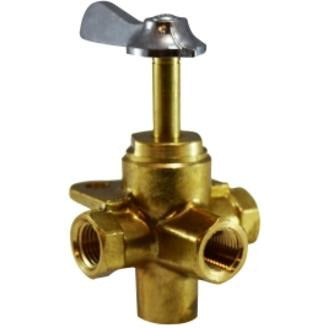

The 1/4 Female Iron Pipe 4-Way Valve Waterflex Click with 360 degree and O-Ring sealed is designed for optimal performance in systems requiring fast and precise port selection. This advanced valve features a non-lubricated plug design, ensuring smooth operation without the need for ongoing relubrication.
| Specification | Details |
|---|---|
| TYPE | 4-Way Valve Waterflex Click |
| DESIGN | Non-lubricated plug for smooth, maintenance-free operation |
| MATERIAL | Brass body with Celcon plug for durability and reliability |
| SUBHEADING | M-114-MID WITH CLICK (3600) |
| STEM LENGTH | 1-3/8" |
| THREAD SIZE | 1/4-18 |
|
WEIGHT (LBS) |
0.450 |
| NOMINAL SIZE |
1/4" |
|
OUTLETS |
Side outlet for easy system integration |
|
MOUNTING |
Bracket mounting for secure setup |
| ROTOR STANDARD | 4-way Celcon rotor for flexible applications |
| NUMBER OF PORT/WAYS | 4 |
| PRESSURE RATING | 30 psig |
| TEMPERATURE RATING | -40 to 180 degrees F |
| CONNECTION TYPE | FIP |
| NOTES | O-Ring Sealed • 4-way celcon roter standard |
| SHAPE | Valve |
| APPLICATIONS | Ideal for water, oil, and gas systems with quick port selection needs |
| BRAND | Midland Industries |
The 1/4 Female Iron Pipe 4-Way Valve Waterflex Click with 360 degree and O-Ring sealed is designed for optimal performance in systems requiring fast and precise port selection. This advanced valve features a non-lubricated plug design, ensuring smooth operation without the need for ongoing relubrication.
| Specification | Details |
|---|---|
| TYPE | 4-Way Valve Waterflex Click |
| DESIGN | Non-lubricated plug for smooth, maintenance-free operation |
| MATERIAL | Brass body with Celcon plug for durability and reliability |
| SUBHEADING | M-114-MID WITH CLICK (3600) |
| STEM LENGTH | 1-3/8" |
| THREAD SIZE | 1/4-18 |
|
WEIGHT (LBS) |
0.450 |
| NOMINAL SIZE |
1/4" |
|
OUTLETS |
Side outlet for easy system integration |
|
MOUNTING |
Bracket mounting for secure setup |
| ROTOR STANDARD | 4-way Celcon rotor for flexible applications |
| NUMBER OF PORT/WAYS | 4 |
| PRESSURE RATING | 30 psig |
| TEMPERATURE RATING | -40 to 180 degrees F |
| CONNECTION TYPE | FIP |
| NOTES | O-Ring Sealed • 4-way celcon roter standard |
| SHAPE | Valve |
| APPLICATIONS | Ideal for water, oil, and gas systems with quick port selection needs |
| BRAND | Midland Industries |
SKU:46255
1/4 Female Iron Pipe 4-Way valve Waterflex Click with 360 degree and O-Ring
- Regular price
- $62.22
- Sale price
- $62.22
