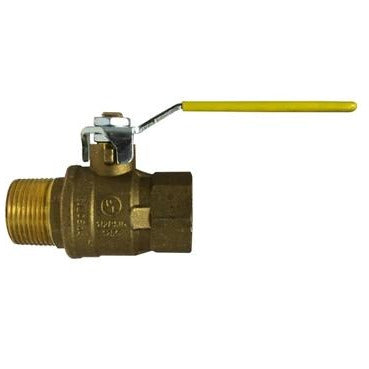

The 1/4 Canadian Standards Association Male x Female Ball Valve is a compact, quarter-turn shutoff valve designed for controlling fluid or gas flow. It features a Male x Female (MXF) threaded connection, making it easy to install in pipelines or equipment. This valve is CSA-certified, ensuring it meets safety and performance standards, particularly for gas and plumbing applications.
| Specification | Value |
|---|---|
| TYPE | Canadian Standards Association Male x Female Ball Valve |
| DESIGN |
Blow-out proof stem, enhances safety by preventing stem ejection under high-pressure |
| BALL MATERIAL | Brass |
| BODY MATERIAL | Brass for corrosion-resistant, ideal for gas and water applications. |
| WEIGHT (LBS) | 0.350 |
|
CONNECTION TYPE |
MPT x FPT |
| DIMENSIONS | 2.18" L |
| DOMESTIC/IMPORT | Import |
| HANDLE MATERIAL | Carbon Steel |
| INLET TO OUTLET LENGTH | 2.18" |
| LEAD-FREE/CONTAINS LEAD | Contains Lead |
| MATERIAL STANDARD | CW617N, UN 5771 |
| NOMINAL SIZE | 1/4" |
| OPERATOR TYPE | 1/4 Turn Handle |
| PACKING MATERIAL | PTFE |
| PORT TYPE | Full |
| PRESSURE RATING | 600 psi WOG |
| SEAL MATERIAL | PTFE |
| SEAT MATERIAL | PTFE |
| STEM MATERIAL | Brass |
| TEMPERATURE RATING | -20 to 248 deg F |
| TOP TO INLET CENTER | 1.53" |
| TRIM MATERIAL | Brass Impacted Nut/Steel Stem Nut/NBR O-Ring |
| THREAD SIZE | 1/4-18 |
| BOXCASE | 24/96 |
| ADDITIONAL INFORMATION | C 3.28 D 0.39 E1 0.43 CH2 0.75 CH1 0.55 DN 0.39 |
| APPLICATIONS |
Ideal for Gas Lines, Plumbing Systems, Hydraulic & Pneumatic Systems, Oil & Fuel Lines, HVAC & Refrigeration, & General Industrial Use. |
| BRAND | Midland Industries |
The 1/4 Canadian Standards Association Male x Female Ball Valve is a compact, quarter-turn shutoff valve designed for controlling fluid or gas flow. It features a Male x Female (MXF) threaded connection, making it easy to install in pipelines or equipment. This valve is CSA-certified, ensuring it meets safety and performance standards, particularly for gas and plumbing applications.
| Specification | Value |
|---|---|
| TYPE | Canadian Standards Association Male x Female Ball Valve |
| DESIGN |
Blow-out proof stem, enhances safety by preventing stem ejection under high-pressure |
| BALL MATERIAL | Brass |
| BODY MATERIAL | Brass for corrosion-resistant, ideal for gas and water applications. |
| WEIGHT (LBS) | 0.350 |
|
CONNECTION TYPE |
MPT x FPT |
| DIMENSIONS | 2.18" L |
| DOMESTIC/IMPORT | Import |
| HANDLE MATERIAL | Carbon Steel |
| INLET TO OUTLET LENGTH | 2.18" |
| LEAD-FREE/CONTAINS LEAD | Contains Lead |
| MATERIAL STANDARD | CW617N, UN 5771 |
| NOMINAL SIZE | 1/4" |
| OPERATOR TYPE | 1/4 Turn Handle |
| PACKING MATERIAL | PTFE |
| PORT TYPE | Full |
| PRESSURE RATING | 600 psi WOG |
| SEAL MATERIAL | PTFE |
| SEAT MATERIAL | PTFE |
| STEM MATERIAL | Brass |
| TEMPERATURE RATING | -20 to 248 deg F |
| TOP TO INLET CENTER | 1.53" |
| TRIM MATERIAL | Brass Impacted Nut/Steel Stem Nut/NBR O-Ring |
| THREAD SIZE | 1/4-18 |
| BOXCASE | 24/96 |
| ADDITIONAL INFORMATION | C 3.28 D 0.39 E1 0.43 CH2 0.75 CH1 0.55 DN 0.39 |
| APPLICATIONS |
Ideal for Gas Lines, Plumbing Systems, Hydraulic & Pneumatic Systems, Oil & Fuel Lines, HVAC & Refrigeration, & General Industrial Use. |
| BRAND | Midland Industries |
SKU:948101
1/4 Canadian Standards Association Male x Female Ball Valve
- Regular price
- $32.81
- Sale price
- $32.81
- Regular price
-
