The 1/4 Brass Ball Valve with Lock Handle is a durable and secure shutoff valve designed for gas, water, oil, and air applications. The locking handle feature provides enhanced safety by preventing accidental operation, making it ideal for residential, commercial, and industrial use. The brass construction ensures corrosion resistance and long-lasting performance.
| Specification | Value |
|---|---|
|
TYPE |
Brass Ball Valve with Lock Handle |
| DESIGN |
Full port design ensures unrestricted flow with minimal pressure loss |
| BALL MATERIAL | Chromium-Plated Brass |
| BODY MATERIAL | Forged Brass for durability and corrosion resistance |
| WEIGHT (LBS) | 0.345 |
|
CONNECTION TYPE |
FPT x FPT |
| DIMENSIONS | 1.73" L |
| DOMESTIC/IMPORT | Import |
| HANDLE MATERIAL | Steel w/ Vinyl Insulator |
| INLET TO OUTLET LENGTH | 1.73" |
| NOMINAL SIZE | 1/4" |
| OPERATOR TYPE | 1/4-Turn Locking Handle |
| PORT TYPE | Full |
| PRESSURE RATING | 600 psi WOG |
| SEAL MATERIAL | PTFE |
| SEAT MATERIAL | PTFE |
| STEM MATERIAL | Brass |
| TEMPERATURE RATING |
-22 to 302 deg F |
| TOP TO INLET CENTER | 1.84" |
| TRIM MATERIAL | Brass Gland/Steel Nut and Spring Inseat |
| THREAD SIZE | 1/4-18 |
| LEAD-FREE/CONTAINS LEAD | Contains Lead |
| APPLICATIONS |
Ideal for Gas & Fuel Systems, Water & Plumbing Systems, HVAC & Heating Systems, Industrial & Manufacturing, Security & Safety Systems. |
| BRAND | Midland Industries |
The 1/4 Brass Ball Valve with Lock Handle is a durable and secure shutoff valve designed for gas, water, oil, and air applications. The locking handle feature provides enhanced safety by preventing accidental operation, making it ideal for residential, commercial, and industrial use. The brass construction ensures corrosion resistance and long-lasting performance.
| Specification | Value |
|---|---|
|
TYPE |
Brass Ball Valve with Lock Handle |
| DESIGN |
Full port design ensures unrestricted flow with minimal pressure loss |
| BALL MATERIAL | Chromium-Plated Brass |
| BODY MATERIAL | Forged Brass for durability and corrosion resistance |
| WEIGHT (LBS) | 0.345 |
|
CONNECTION TYPE |
FPT x FPT |
| DIMENSIONS | 1.73" L |
| DOMESTIC/IMPORT | Import |
| HANDLE MATERIAL | Steel w/ Vinyl Insulator |
| INLET TO OUTLET LENGTH | 1.73" |
| NOMINAL SIZE | 1/4" |
| OPERATOR TYPE | 1/4-Turn Locking Handle |
| PORT TYPE | Full |
| PRESSURE RATING | 600 psi WOG |
| SEAL MATERIAL | PTFE |
| SEAT MATERIAL | PTFE |
| STEM MATERIAL | Brass |
| TEMPERATURE RATING |
-22 to 302 deg F |
| TOP TO INLET CENTER | 1.84" |
| TRIM MATERIAL | Brass Gland/Steel Nut and Spring Inseat |
| THREAD SIZE | 1/4-18 |
| LEAD-FREE/CONTAINS LEAD | Contains Lead |
| APPLICATIONS |
Ideal for Gas & Fuel Systems, Water & Plumbing Systems, HVAC & Heating Systems, Industrial & Manufacturing, Security & Safety Systems. |
| BRAND | Midland Industries |
SKU:940171L

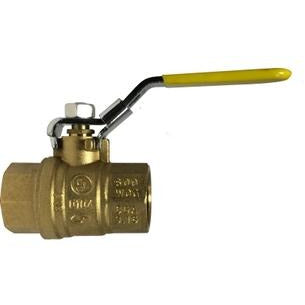

1/4 Brass Ball Valve with Lock Handle
- Regular price
- $9.85
- Sale price
- $9.85
