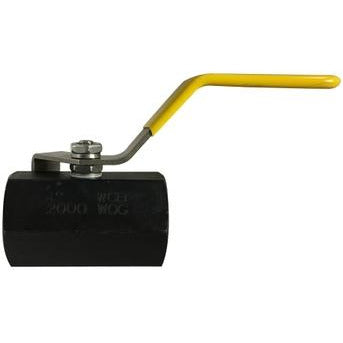

The 1/4 2000 WOG(Water, Oil, Gas) Carbon Ball Valve is a high-pressure, two-piece shut-off valve designed for water, oil, and gas (WOG) applications. Constructed from durable carbon steel, this valve provides exceptional strength, corrosion resistance, and reliability in demanding environments. The full port design ensures unrestricted flow, reducing pressure drop and improving system efficiency. The lever handle allows for quick and precise manual operation, making it an ideal choice for industrial and commercial fluid control systems.
| Specification | Value |
|---|---|
| TYPE | Carbon Ball Valve |
| DESIGN |
Standard port design for a compact and cost-effective installation |
| BODY MATERIAL | Carbon Steel for superior strength and longevity |
| BALL MATERIAL | 304 Stainless Steel |
| ADDITIONAL INFORMATION | 1/4-18 Thread Size |
| WEIGHT (LBS) | 0.270 |
| CONNECTION TYPE | FPT x FPT |
| DIMENSIONS | 1.71" Length |
| DOMESTIC/IMPORT | Import |
| HANDLE MATERIAL | 304 Stainless Steel |
| INLET TO OUTLET LENGTH | 1.71" |
| MATERIAL STANDARD | ASTM A216 WCB |
| NOMINAL SIZE | 1/4" |
| OPERATOR TYPE | Handle |
| PACKING MATERIAL | PTFE |
| PORT TYPE | Standard |
| PRESSURE RATING | 2000 psi WOG |
| SEAL MATERIAL | PTFE |
| SEAT MATERIAL | PTFE |
| STEM MATERIAL | 304 Stainless Steel |
| TEMPERATURE RATING | -60 to 450 deg F |
| TOP TO INLET CENTER | 1.38" |
| TRIM MATERIAL | 304 Stainless Steel Gland Nut, Spring Washer and Stem Nut |
| WTG | 0.25 |
| BOXCASE | 24/96 |
| ADDITIONAL INFORMATION |
D 0.2 E 2.95 |
| APPLICATIONS | Ideal for hydraulics, oil & gas, water treatment, HVAC, industrial processing, fire safety, marine, and food industries |
| BRAND | Midland Industries |
The 1/4 2000 WOG(Water, Oil, Gas) Carbon Ball Valve is a high-pressure, two-piece shut-off valve designed for water, oil, and gas (WOG) applications. Constructed from durable carbon steel, this valve provides exceptional strength, corrosion resistance, and reliability in demanding environments. The full port design ensures unrestricted flow, reducing pressure drop and improving system efficiency. The lever handle allows for quick and precise manual operation, making it an ideal choice for industrial and commercial fluid control systems.
| Specification | Value |
|---|---|
| TYPE | Carbon Ball Valve |
| DESIGN |
Standard port design for a compact and cost-effective installation |
| BODY MATERIAL | Carbon Steel for superior strength and longevity |
| BALL MATERIAL | 304 Stainless Steel |
| ADDITIONAL INFORMATION | 1/4-18 Thread Size |
| WEIGHT (LBS) | 0.270 |
| CONNECTION TYPE | FPT x FPT |
| DIMENSIONS | 1.71" Length |
| DOMESTIC/IMPORT | Import |
| HANDLE MATERIAL | 304 Stainless Steel |
| INLET TO OUTLET LENGTH | 1.71" |
| MATERIAL STANDARD | ASTM A216 WCB |
| NOMINAL SIZE | 1/4" |
| OPERATOR TYPE | Handle |
| PACKING MATERIAL | PTFE |
| PORT TYPE | Standard |
| PRESSURE RATING | 2000 psi WOG |
| SEAL MATERIAL | PTFE |
| SEAT MATERIAL | PTFE |
| STEM MATERIAL | 304 Stainless Steel |
| TEMPERATURE RATING | -60 to 450 deg F |
| TOP TO INLET CENTER | 1.38" |
| TRIM MATERIAL | 304 Stainless Steel Gland Nut, Spring Washer and Stem Nut |
| WTG | 0.25 |
| BOXCASE | 24/96 |
| ADDITIONAL INFORMATION |
D 0.2 E 2.95 |
| APPLICATIONS | Ideal for hydraulics, oil & gas, water treatment, HVAC, industrial processing, fire safety, marine, and food industries |
| BRAND | Midland Industries |
SKU:949121
1/4 2000 WOG(Water, Oil, Gas) Carbon Ball Valve
- Regular price
- $91.25
- Sale price
- $91.25
