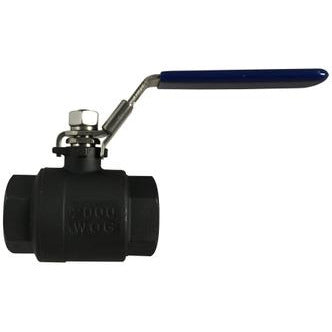

The 1/4 2000 Pounds per Square Inch 2 Piece Carbon Ball Valve is a high-pressure, durable shut-off valve designed for industrial and commercial applications. Made from carbon steel, this valve offers superior strength, corrosion resistance, and longevity, making it ideal for handling high-pressure fluids and gases. The two-piece design allows for easy maintenance and installation, while the full port construction ensures maximum flow capacity with minimal pressure drop.
| Specification | Value |
|---|---|
| TYPE | Carbon Ball Valve |
| DESIGN |
Full port design to ensure maximum flow with minimal restriction |
| MATERIAL | Carbon Steel for superior strength and longevity |
| BODY MATERIAL | Carbon Steel |
| BALL MATERIAL | 316 Stainless Steel |
| ADDITIONAL INFORMATION | 1/4-18 Thread Size |
| WEIGHT (LBS) | 0.640 |
| CONNECTION TYPE | FPT x FPT |
| DIMENSIONS | 2.13" Length |
| DOMESTIC/IMPORT | Import |
| HANDLE MATERIAL | 304 Stainless Steel |
| INLET TO OUTLET LENGTH | 2.13" |
| MATERIAL STANDARD | CF8M |
| NOMINAL SIZE | 1/4" |
| OPERATOR TYPE | Handle |
| PACKING MATERIAL | PTFE |
| PORT TYPE | Full |
| PRESSURE RATING | 2000 psi WOG |
| SEAL MATERIAL | PTFE |
| SEAT MATERIAL | PTFE |
| STEM MATERIAL | 316 Stainless Steel |
| TEMPERATURE RATING | -10 to 150 deg C |
| TOP TO INLET CENTER | 2.13" |
| TRIM MATERIAL | 304 Stainless Steel Gland Nut, Spring Washer and Stem Nut |
|
ITEM INFO |
Two Pieces 0.59 70 0.36 4.33 |
| APPLICATIONS | Ideal for hydraulics, oil & gas, water treatment, HVAC, industrial processing, fire safety, marine, and food industries |
| BRAND | Midland Industries |
The 1/4 2000 Pounds per Square Inch 2 Piece Carbon Ball Valve is a high-pressure, durable shut-off valve designed for industrial and commercial applications. Made from carbon steel, this valve offers superior strength, corrosion resistance, and longevity, making it ideal for handling high-pressure fluids and gases. The two-piece design allows for easy maintenance and installation, while the full port construction ensures maximum flow capacity with minimal pressure drop.
| Specification | Value |
|---|---|
| TYPE | Carbon Ball Valve |
| DESIGN |
Full port design to ensure maximum flow with minimal restriction |
| MATERIAL | Carbon Steel for superior strength and longevity |
| BODY MATERIAL | Carbon Steel |
| BALL MATERIAL | 316 Stainless Steel |
| ADDITIONAL INFORMATION | 1/4-18 Thread Size |
| WEIGHT (LBS) | 0.640 |
| CONNECTION TYPE | FPT x FPT |
| DIMENSIONS | 2.13" Length |
| DOMESTIC/IMPORT | Import |
| HANDLE MATERIAL | 304 Stainless Steel |
| INLET TO OUTLET LENGTH | 2.13" |
| MATERIAL STANDARD | CF8M |
| NOMINAL SIZE | 1/4" |
| OPERATOR TYPE | Handle |
| PACKING MATERIAL | PTFE |
| PORT TYPE | Full |
| PRESSURE RATING | 2000 psi WOG |
| SEAL MATERIAL | PTFE |
| SEAT MATERIAL | PTFE |
| STEM MATERIAL | 316 Stainless Steel |
| TEMPERATURE RATING | -10 to 150 deg C |
| TOP TO INLET CENTER | 2.13" |
| TRIM MATERIAL | 304 Stainless Steel Gland Nut, Spring Washer and Stem Nut |
|
ITEM INFO |
Two Pieces 0.59 70 0.36 4.33 |
| APPLICATIONS | Ideal for hydraulics, oil & gas, water treatment, HVAC, industrial processing, fire safety, marine, and food industries |
| BRAND | Midland Industries |
SKU:949111
1/4 2000 Pounds per Square Inch 2 Piece Carbon Ball Valve
- Regular price
- $96.36
- Sale price
- $96.36
