The 1/4 2000# Full Port Stainless Steel Ball Valve is a high-pressure, corrosion-resistant shut-off valve designed for industrial applications. The full port design ensures maximum flow with minimal pressure drop, while the stainless steel construction provides durability in harsh environments. This valve is ideal for hydraulic, pneumatic, chemical, water, oil, and gas applications.
| Specification | Value |
|---|---|
| TYPE | Ball Valve |
| DESIGN |
Full port design to ensure maximum flow with minimal restriction |
| BODY MATERIAL | 316 Stainless Steel for superior strength and corrosion resistance |
| BALL MATERIAL | 316 Stainless Steel |
| ADDITIONAL INFORMATION |
0.157" N.M W 4.33 D 0.36 CASE 80 |
| WEIGHT (LBS) | 0.640 |
| CONNECTION TYPE | FPT x FPT |
| DIMENSIONS | 2.13" Length |
| DOMESTIC/IMPORT | Import |
| HANDLE MATERIAL | 304 Stainless Steel |
| INLET TO OUTLET LENGTH | 2.13" |
| MATERIAL STANDARD | CF8M |
| NOMINAL SIZE | 1/4" |
| OPERATOR TYPE | Locking Handle |
| PACKING MATERIAL | PTFE |
| PORT TYPE | Full |
| PRESSURE RATING | 2000 psi |
| SEAL MATERIAL | PTFE |
| SEAT MATERIAL | PTFE |
| STEM MATERIAL | 316 Stainless Steel |
| TOP TO INLET CENTER | 2.13" |
| THREAD SIZE | 1/4-18 |
| TRIM MATERIAL | 304 Stainless Steel Nut and Washer, Gland Nut |
| APPLICATIONS | Ideal for hydraulics, oil & gas, water treatment, HVAC, industrial processing, fire safety, marine, and food industries |
| BRAND | Midland Industries |
The 1/4 2000# Full Port Stainless Steel Ball Valve is a high-pressure, corrosion-resistant shut-off valve designed for industrial applications. The full port design ensures maximum flow with minimal pressure drop, while the stainless steel construction provides durability in harsh environments. This valve is ideal for hydraulic, pneumatic, chemical, water, oil, and gas applications.
| Specification | Value |
|---|---|
| TYPE | Ball Valve |
| DESIGN |
Full port design to ensure maximum flow with minimal restriction |
| BODY MATERIAL | 316 Stainless Steel for superior strength and corrosion resistance |
| BALL MATERIAL | 316 Stainless Steel |
| ADDITIONAL INFORMATION |
0.157" N.M W 4.33 D 0.36 CASE 80 |
| WEIGHT (LBS) | 0.640 |
| CONNECTION TYPE | FPT x FPT |
| DIMENSIONS | 2.13" Length |
| DOMESTIC/IMPORT | Import |
| HANDLE MATERIAL | 304 Stainless Steel |
| INLET TO OUTLET LENGTH | 2.13" |
| MATERIAL STANDARD | CF8M |
| NOMINAL SIZE | 1/4" |
| OPERATOR TYPE | Locking Handle |
| PACKING MATERIAL | PTFE |
| PORT TYPE | Full |
| PRESSURE RATING | 2000 psi |
| SEAL MATERIAL | PTFE |
| SEAT MATERIAL | PTFE |
| STEM MATERIAL | 316 Stainless Steel |
| TOP TO INLET CENTER | 2.13" |
| THREAD SIZE | 1/4-18 |
| TRIM MATERIAL | 304 Stainless Steel Nut and Washer, Gland Nut |
| APPLICATIONS | Ideal for hydraulics, oil & gas, water treatment, HVAC, industrial processing, fire safety, marine, and food industries |
| BRAND | Midland Industries |
SKU:949171

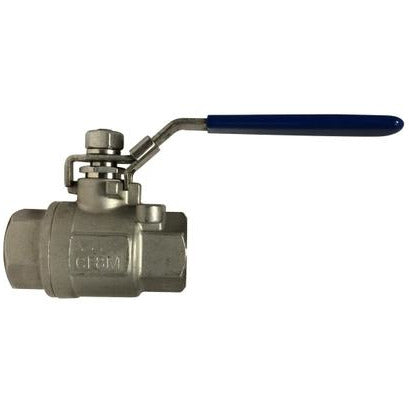

1/4 2000# Full Port Stainless Steel Ball Valve
- Regular price
- $61.36
- Sale price
- $61.36
