The 1/4 1000 Pounds per Square Inch 1 316 Piece Stainless Steel Ball Valve is a compact and durable shut-off valve designed for medium to high-pressure applications. The piece body design reduces potential leak points, making it a reliable option for fluid and gas control. Made from 316 stainless steel, it provides excellent corrosion resistance, making it suitable for water, oil, gas, chemical, and industrial applications.
| Specification | Value |
|---|---|
| TYPE | Ball Valve |
| DESIGN |
Compact & lightweight design to save space in tight installations |
| BODY MATERIAL | 316 Stainless Steel for superior strength and corrosion resistance |
| BALL MATERIAL | 316 Stainless Steel |
| WEIGHT (LBS) | 0.190 |
| CONNECTION TYPE | FNPT x FNPT |
| DIMENSIONS | 1.53" Length |
| DOMESTIC/IMPORT | Import |
| HANDLE MATERIAL | AISI 304 Stainless Steel |
| INLET TO OUTLET LENGTH | 1.53" |
| MATERIAL STANDARD | ASTM A351 CF8M |
| NOMINAL SIZE | 1/4" |
| OPERATOR TYPE | Locking Handle |
| PACKING MATERIAL | AISI 304 Stainless Steel Ring |
| PORT TYPE | Standard |
| PRESSURE RATING | 1000 psi |
| SEAL MATERIAL | PTFE |
| SEAT MATERIAL | PTFE |
| STEM MATERIAL | AISI 304 Stainless Steel Nut |
| TOP TO INLET CENTER | 1.53" |
| THREAD SIZE | 1/4-18 |
| TRIM MATERIAL | PTFE Thrust Washer |
| CASE | 150 |
| ADDITIONAL DIMENSION |
D 0.2 W 3.03 |
| APPLICATIONS | Ideal for hydraulics, oil & gas, water treatment, HVAC, industrial processing, fire safety, marine, and food industries |
| BRAND | Midland Industries |
The 1/4 1000 Pounds per Square Inch 1 316 Piece Stainless Steel Ball Valve is a compact and durable shut-off valve designed for medium to high-pressure applications. The piece body design reduces potential leak points, making it a reliable option for fluid and gas control. Made from 316 stainless steel, it provides excellent corrosion resistance, making it suitable for water, oil, gas, chemical, and industrial applications.
| Specification | Value |
|---|---|
| TYPE | Ball Valve |
| DESIGN |
Compact & lightweight design to save space in tight installations |
| BODY MATERIAL | 316 Stainless Steel for superior strength and corrosion resistance |
| BALL MATERIAL | 316 Stainless Steel |
| WEIGHT (LBS) | 0.190 |
| CONNECTION TYPE | FNPT x FNPT |
| DIMENSIONS | 1.53" Length |
| DOMESTIC/IMPORT | Import |
| HANDLE MATERIAL | AISI 304 Stainless Steel |
| INLET TO OUTLET LENGTH | 1.53" |
| MATERIAL STANDARD | ASTM A351 CF8M |
| NOMINAL SIZE | 1/4" |
| OPERATOR TYPE | Locking Handle |
| PACKING MATERIAL | AISI 304 Stainless Steel Ring |
| PORT TYPE | Standard |
| PRESSURE RATING | 1000 psi |
| SEAL MATERIAL | PTFE |
| SEAT MATERIAL | PTFE |
| STEM MATERIAL | AISI 304 Stainless Steel Nut |
| TOP TO INLET CENTER | 1.53" |
| THREAD SIZE | 1/4-18 |
| TRIM MATERIAL | PTFE Thrust Washer |
| CASE | 150 |
| ADDITIONAL DIMENSION |
D 0.2 W 3.03 |
| APPLICATIONS | Ideal for hydraulics, oil & gas, water treatment, HVAC, industrial processing, fire safety, marine, and food industries |
| BRAND | Midland Industries |
SKU:949101

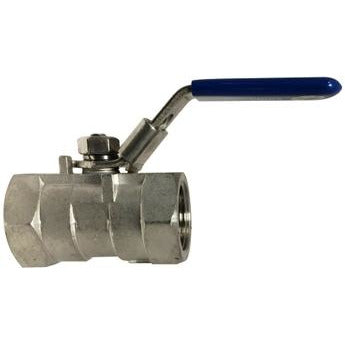

1/4 1000 Pounds per Square Inch 1 Piece 316 Stainless Steel Ball Valve
- Regular price
- $60.57
- Sale price
- $60.57
