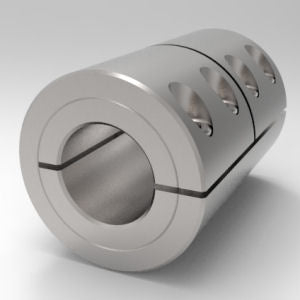

1-3/8" X 1-3/8" One-Piece Split Clamp-Type Rigid Shaft Coupling, Stainless
    1-3/8" X 1-3/8" One-Piece Split Clamp-Type Rigid Shaft Coupling, Stainless
1-3/8" X 1-3/8" One-Piece Split Clamp-Type Rigid Shaft Coupling, Stainless
1-3/8" X 1-3/8" One-Piece Split Clamp-Type Rigid Shaft Coupling, Stainless
    1-3/8" X 1-3/8" One-Piece Split Clamp-Type Rigid Shaft Coupling, Stainless
1-3/8" X 1-3/8" One-Piece Split Clamp-Type Rigid Shaft Coupling, Stainless
Description
  • Mate two shafts with zero backlash
  • Smooth bore protects shafts from damage
  • Superior torque capacity over set-screw-type couplings
  • Available with straight-through or stepped bores
  • Offered in High Strength, Low Profile and Heavy Duty styles
Designed for aligned shafts, the 1-Piece Clamp-Type Coupling makes two shafts function as one.

Clamp-Type Couplings are available in straight-through or stepped bores. They are precision machined, non-marring, easy to adjust, with high clamping power.

Stocked in:
  • Steel
  • Stainless Steel
  • Aluminum
Offered in three styles:
  • High Strength: Clamp screw does not protrude beyond the outside diameter (OD)
  • Low Profile: Clamp screw protrudes beyond the OD
  • Heavy Duty: Uses larger clamp screw and has larger OD for 2X holding power


Specifications

Part Number

5S106106

Series

Signature

Material

Stainless Steel

Alloy

303

Finish

Shiny

Type

High Strength

Approximate Weight

2.90 lb

Country of Origin

USA

UPC Code

662786015243

RoHS2 Compliant

Yes

REACH Compliant

Yes

Dimensional Attributes

Bore Size A



1-3/8 in

Bore Size B



1-3/8 in

Outside Diameter

2.375 in

Total Length

3.625 in

Recessed Screw

Yes

Screw Size

1/4-28 x 5/8

Screw Material

18-8 Stainless Steel
Description
  • Mate two shafts with zero backlash
  • Smooth bore protects shafts from damage
  • Superior torque capacity over set-screw-type couplings
  • Available with straight-through or stepped bores
  • Offered in High Strength, Low Profile and Heavy Duty styles
Designed for aligned shafts, the 1-Piece Clamp-Type Coupling makes two shafts function as one.

Clamp-Type Couplings are available in straight-through or stepped bores. They are precision machined, non-marring, easy to adjust, with high clamping power.

Stocked in:
  • Steel
  • Stainless Steel
  • Aluminum
Offered in three styles:
  • High Strength: Clamp screw does not protrude beyond the outside diameter (OD)
  • Low Profile: Clamp screw protrudes beyond the OD
  • Heavy Duty: Uses larger clamp screw and has larger OD for 2X holding power


Specifications

Part Number

5S106106

Series

Signature

Material

Stainless Steel

Alloy

303

Finish

Shiny

Type

High Strength

Approximate Weight

2.90 lb

Country of Origin

USA

UPC Code

662786015243

RoHS2 Compliant

Yes

REACH Compliant

Yes

Dimensional Attributes

Bore Size A



1-3/8 in

Bore Size B



1-3/8 in

Outside Diameter

2.375 in

Total Length

3.625 in

Recessed Screw

Yes

Screw Size

1/4-28 x 5/8

Screw Material

18-8 Stainless Steel
STAFFORD MANUFACTURING CORP by STAFFORD MANUFACTURING CORP

Translation missing: en.products.product.sku:5S106106

1-3/8" X 1-3/8" One-Piece Split Clamp-Type Rigid Shaft Coupling, Stainless

Regular price
$258.18
Sale price
$258.18
