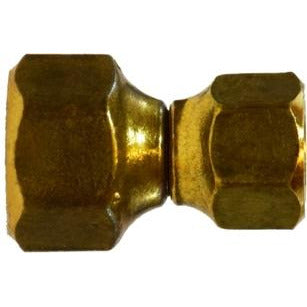

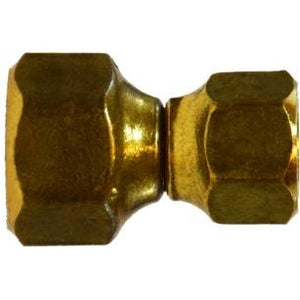

The 1/2 X 3/8 Reducing Female Flare Swivel Union is a precision-engineered fitting designed to connect two flare fittings of different sizes while allowing for easy swivel functionality. The Swivel Functionality includes a swivel nut for easy installation without twisting or stressing the connected tubing. It’s commonly used in HVAC systems, refrigeration lines, gas connections, hydraulic systems, and fluid transfer applications.
| Specification | Details |
|---|---|
| TYPE | Female Flare Union |
| DESIGN |
Swivel functionality for easy installation without stressing the tubes |
| ADDITIONAL INFORMATION | 0.032" Tube Wall Thickness, 1.54" length, 0.84" 0.7" Center to End |
| MATERIAL |
Brass for superior corrosion resistance and durability |
| MATERIAL CONSTRUCTION | Brass |
|
WEIGHT (lbs) |
0.12 |
| CONNECTION SIZE 1 | 1/2" |
| CONNECTION SIZE 2 | 3/8" |
| CONNECTION TYPE | Female SAE Flared|Female SAE Flared |
| CONNECTION TYPE 1 | SAE 45 deg Female Flared |
| CONNECTION TYPE 2 | SAE 45 deg Female Flared |
| FITTING TYPE | Union |
| HEX SIZE | 0.94 x 0.81" |
| PRESSURE RATING | 750 psi |
| TEMPERATURE RATING | -65 to 250 deg F |
| THREAD SIZE | 3/4-16 x 5/8-18 |
| FOR USE WITH | Aluminum, Brass, Copper, Steel Hydraulic Tubing That Can Be Flared |
| NOTE | BRASS FLARE SWIVEL FITTINGS |
| APPLICATIONS |
Ideal for HVAC, refrigeration, fuel systems, plumbing and hydraulic systems |
| BRAND | Midland Industries |
The 1/2 X 3/8 Reducing Female Flare Swivel Union is a precision-engineered fitting designed to connect two flare fittings of different sizes while allowing for easy swivel functionality. The Swivel Functionality includes a swivel nut for easy installation without twisting or stressing the connected tubing. It’s commonly used in HVAC systems, refrigeration lines, gas connections, hydraulic systems, and fluid transfer applications.
| Specification | Details |
|---|---|
| TYPE | Female Flare Union |
| DESIGN |
Swivel functionality for easy installation without stressing the tubes |
| ADDITIONAL INFORMATION | 0.032" Tube Wall Thickness, 1.54" length, 0.84" 0.7" Center to End |
| MATERIAL |
Brass for superior corrosion resistance and durability |
| MATERIAL CONSTRUCTION | Brass |
|
WEIGHT (lbs) |
0.12 |
| CONNECTION SIZE 1 | 1/2" |
| CONNECTION SIZE 2 | 3/8" |
| CONNECTION TYPE | Female SAE Flared|Female SAE Flared |
| CONNECTION TYPE 1 | SAE 45 deg Female Flared |
| CONNECTION TYPE 2 | SAE 45 deg Female Flared |
| FITTING TYPE | Union |
| HEX SIZE | 0.94 x 0.81" |
| PRESSURE RATING | 750 psi |
| TEMPERATURE RATING | -65 to 250 deg F |
| THREAD SIZE | 3/4-16 x 5/8-18 |
| FOR USE WITH | Aluminum, Brass, Copper, Steel Hydraulic Tubing That Can Be Flared |
| NOTE | BRASS FLARE SWIVEL FITTINGS |
| APPLICATIONS |
Ideal for HVAC, refrigeration, fuel systems, plumbing and hydraulic systems |
| BRAND | Midland Industries |
SKU:10488
1/2 X 3/8 Reducing Female Flare Swivel Union
- Regular price
- $26.36
- Sale price
- $26.36
