The 1/2" x 1/4" Inverted Flare x Male 45 deg Elbow is a high-quality, 90-degree fitting designed to connect pipes or hoses of different sizes. With a 1/2" inverted flare on one end for a secure, leak-resistant connection and a 1/4" male thread on the other, this elbow provides a reliable and compact solution for various fluid and gas systems. Commonly used in hydraulic, fuel, and pneumatic applications, it offers a space-efficient way to change the direction of fluid flow while maintaining system integrity.
|
Specification |
Details |
|
TYPE |
Inverted Flare x Male Elbow |
|
DESIGN |
45 deg elbow to saves space and redirects flow |
|
MATERIAL |
Brass for durability, corrosion resistance, and compatibility |
|
MATERIAL CONSTRUCTION |
Brass |
|
ADDITIONAL INFORMATION |
0.72 x 1.08" Center to End |
|
TUBE WALL |
0.032 |
|
CONNECTION SIZE 1 |
1/2" |
|
CONNECTION SIZE 2 |
1/4" |
|
CONNECTION TYPE |
Female Inverted Flared|MNPT |
|
CONNECTION TYPE 1 |
Inverted Flared |
|
CONNECTION TYPE 2 |
Male NPTF |
|
FOR USE WITH |
Aluminum, Brass, Copper, Steel Hydraulic Tubing That Can Be Flared |
|
FITTING TYPE |
45 deg Elbow |
|
PRESSURE RATING |
750 psi |
|
TEMPERATURE RATING |
-65 to 250 deg F |
|
THREAD SIZE |
3/4-18 x 1/4-18 |
|
SAE # |
040202 |
|
APPROX WT LBS |
0.14 |
|
APPLICATIONS |
Ideal for hydraulic systems, fuel lines, pneumatic systems and air conditioning and refrigeration. |
|
BRAND |
Midland Industries |
Link to Midland Industries Catalog
The 1/2" x 1/4" Inverted Flare x Male 45 deg Elbow is a high-quality, 90-degree fitting designed to connect pipes or hoses of different sizes. With a 1/2" inverted flare on one end for a secure, leak-resistant connection and a 1/4" male thread on the other, this elbow provides a reliable and compact solution for various fluid and gas systems. Commonly used in hydraulic, fuel, and pneumatic applications, it offers a space-efficient way to change the direction of fluid flow while maintaining system integrity.
|
Specification |
Details |
|
TYPE |
Inverted Flare x Male Elbow |
|
DESIGN |
45 deg elbow to saves space and redirects flow |
|
MATERIAL |
Brass for durability, corrosion resistance, and compatibility |
|
MATERIAL CONSTRUCTION |
Brass |
|
ADDITIONAL INFORMATION |
0.72 x 1.08" Center to End |
|
TUBE WALL |
0.032 |
|
CONNECTION SIZE 1 |
1/2" |
|
CONNECTION SIZE 2 |
1/4" |
|
CONNECTION TYPE |
Female Inverted Flared|MNPT |
|
CONNECTION TYPE 1 |
Inverted Flared |
|
CONNECTION TYPE 2 |
Male NPTF |
|
FOR USE WITH |
Aluminum, Brass, Copper, Steel Hydraulic Tubing That Can Be Flared |
|
FITTING TYPE |
45 deg Elbow |
|
PRESSURE RATING |
750 psi |
|
TEMPERATURE RATING |
-65 to 250 deg F |
|
THREAD SIZE |
3/4-18 x 1/4-18 |
|
SAE # |
040202 |
|
APPROX WT LBS |
0.14 |
|
APPLICATIONS |
Ideal for hydraulic systems, fuel lines, pneumatic systems and air conditioning and refrigeration. |
|
BRAND |
Midland Industries |
Link to Midland Industries Catalog
SKU:12114

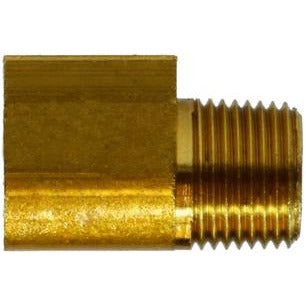

1/2" x 1/4" Inverted Flare x Male Elbow
- Regular price
- $26.62
- Sale price
- $26.62
- Regular price
-
