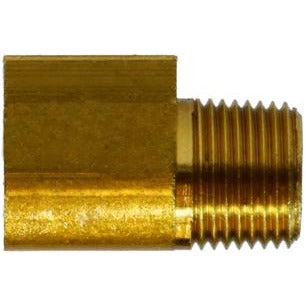

The 1/2" x 1/2" Female Inverted Flare x Male Iron Pipe 90 deg Elbow is a durable plumbing fitting designed to create a 90-degree angle between two pipes or hoses. Featuring a female inverted flare connection on one end and a male iron pipe thread on the other, this elbow ensures a secure, leak-free connection for various fluid and gas systems. Ideal for use in fuel lines, hydraulic, and pneumatic applications, it provides reliable performance in tight spaces where a 90-degree turn is required.
|
Specification |
Details |
|
TYPE |
Female Inverted Flare x Male Iron Pipe Elbow |
|
DESIGN |
90-Degree Elbow to connect a tube with an inverted flare fitting to a threaded pipe fitting at a right angle. |
| MATERIAL |
Brass for durability, corrosion resistance, and compatibility |
| MATERIAL CONSTRUCTION |
Brass |
| ADDITIONAL INFORMATION |
0.66 x 1.22" Center to End |
| TUBE WALL |
0.032" |
| WEIGHT (LBS) |
0.250 |
| CONNECTION SIZE 1 |
1/2" |
| CONNECTION SIZE 2 |
1/2" |
| CONNECTION TYPE |
Female Inverted Flared|MNPT |
| CONNECTION TYPE 1 |
Female Inverted Flared |
| CONNECTION TYPE 2 |
MNPTF |
|
DIMENSIONS |
1.72" L |
|
FOR USE WITH |
Aluminum, Brass, Copper, and Steel Hydraulic Tubing |
| FITTING TYPE | 90 deg Elbow |
|
MAXIMUM OPERATING PRESSURE |
750 psi |
|
OPERATING TEMPERATURE |
-65 to 250 deg F |
|
THREAD SIZE |
3/4-18 x 1/2-14 |
|
SAE # |
040202 |
|
APPLICATIONS |
Ideal for hydraulic systems, fuel lines, pneumatic systems. |
|
BRAND |
Midland Industries |
Link to Midland Industries Catalog
The 1/2" x 1/2" Female Inverted Flare x Male Iron Pipe 90 deg Elbow is a durable plumbing fitting designed to create a 90-degree angle between two pipes or hoses. Featuring a female inverted flare connection on one end and a male iron pipe thread on the other, this elbow ensures a secure, leak-free connection for various fluid and gas systems. Ideal for use in fuel lines, hydraulic, and pneumatic applications, it provides reliable performance in tight spaces where a 90-degree turn is required.
|
Specification |
Details |
|
TYPE |
Female Inverted Flare x Male Iron Pipe Elbow |
|
DESIGN |
90-Degree Elbow to connect a tube with an inverted flare fitting to a threaded pipe fitting at a right angle. |
| MATERIAL |
Brass for durability, corrosion resistance, and compatibility |
| MATERIAL CONSTRUCTION |
Brass |
| ADDITIONAL INFORMATION |
0.66 x 1.22" Center to End |
| TUBE WALL |
0.032" |
| WEIGHT (LBS) |
0.250 |
| CONNECTION SIZE 1 |
1/2" |
| CONNECTION SIZE 2 |
1/2" |
| CONNECTION TYPE |
Female Inverted Flared|MNPT |
| CONNECTION TYPE 1 |
Female Inverted Flared |
| CONNECTION TYPE 2 |
MNPTF |
|
DIMENSIONS |
1.72" L |
|
FOR USE WITH |
Aluminum, Brass, Copper, and Steel Hydraulic Tubing |
| FITTING TYPE | 90 deg Elbow |
|
MAXIMUM OPERATING PRESSURE |
750 psi |
|
OPERATING TEMPERATURE |
-65 to 250 deg F |
|
THREAD SIZE |
3/4-18 x 1/2-14 |
|
SAE # |
040202 |
|
APPLICATIONS |
Ideal for hydraulic systems, fuel lines, pneumatic systems. |
|
BRAND |
Midland Industries |
Link to Midland Industries Catalog
SKU:12067
1/2" x 1/2" Female Inverted Flare x Male Iron Pipe Elbow
- Regular price
- $14.87
- Sale price
- $14.87
- Regular price
-
