The 1/2 Stainless Steel Female x Female Spring Check Valve is a one-way valve designed to prevent backflow in fluid and gas systems. It features a spring-loaded mechanism that automatically closes when the flow stops, ensuring directional flow control. The stainless steel body provides excellent corrosion resistance, making it ideal for high-pressure, high-temperature, and aggressive fluid applications.
| Specification | Value |
|---|---|
| TYPE | Check Valve |
| DESIGN |
Compact & inline design to fit easily into piping systems without taking up extra space |
| BODY MATERIAL | 316 Stainless Steel for superior corrosion resistance |
| ADDITIONAL INFORMATION | 2 to 3 psi Opening Pressure, 2.165" Length, 1.063" Diameter, 0.945" Thread Width, 0.472" Thread Length |
| WEIGHT (LBS) | 0.310 |
| CONNECTION TYPE | FNPT x FNPT |
| DOMESTIC/IMPORT | Import |
| INLET TO OUTLET LENGTH | 2.165" |
|
MEDIA |
Gas, Oil, Water |
| NOMINAL SIZE | 1/2" |
| PRESSURE RATING | 1500 psi |
| SEAL MATERIAL | Rubber |
| TEMPERATURE RATING | -10 to 150 deg C |
| THREAD SIZE | 1/2-14 |
| TRIM MATERIAL | 304 Stainless Steel Spring and Spring Ring/CF8M Steel Cap/304/316 Stainless Steel Spool |
| ITEM INFO |
One piece |
| CASE | 100 |
| ADDITIONAL DIMENSION | C 0.413 D 1.063 E 0.472 |
| APPLICATIONS | Ideal for hydraulic, pneumatic, water, fuel, and chemical systems |
| BRAND | Midland Industries |
The 1/2 Stainless Steel Female x Female Spring Check Valve is a one-way valve designed to prevent backflow in fluid and gas systems. It features a spring-loaded mechanism that automatically closes when the flow stops, ensuring directional flow control. The stainless steel body provides excellent corrosion resistance, making it ideal for high-pressure, high-temperature, and aggressive fluid applications.
| Specification | Value |
|---|---|
| TYPE | Check Valve |
| DESIGN |
Compact & inline design to fit easily into piping systems without taking up extra space |
| BODY MATERIAL | 316 Stainless Steel for superior corrosion resistance |
| ADDITIONAL INFORMATION | 2 to 3 psi Opening Pressure, 2.165" Length, 1.063" Diameter, 0.945" Thread Width, 0.472" Thread Length |
| WEIGHT (LBS) | 0.310 |
| CONNECTION TYPE | FNPT x FNPT |
| DOMESTIC/IMPORT | Import |
| INLET TO OUTLET LENGTH | 2.165" |
|
MEDIA |
Gas, Oil, Water |
| NOMINAL SIZE | 1/2" |
| PRESSURE RATING | 1500 psi |
| SEAL MATERIAL | Rubber |
| TEMPERATURE RATING | -10 to 150 deg C |
| THREAD SIZE | 1/2-14 |
| TRIM MATERIAL | 304 Stainless Steel Spring and Spring Ring/CF8M Steel Cap/304/316 Stainless Steel Spool |
| ITEM INFO |
One piece |
| CASE | 100 |
| ADDITIONAL DIMENSION | C 0.413 D 1.063 E 0.472 |
| APPLICATIONS | Ideal for hydraulic, pneumatic, water, fuel, and chemical systems |
| BRAND | Midland Industries |
SKU:949453

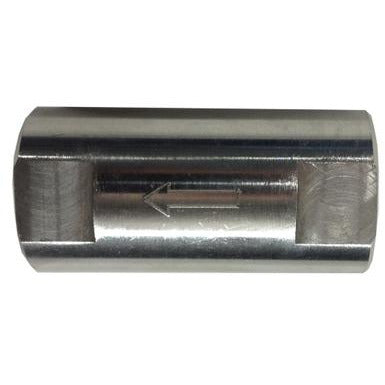

1/2 Stainless Steel Female x Female Spring Check Valve
- Regular price
- $65.14
- Sale price
- $65.14
