Description

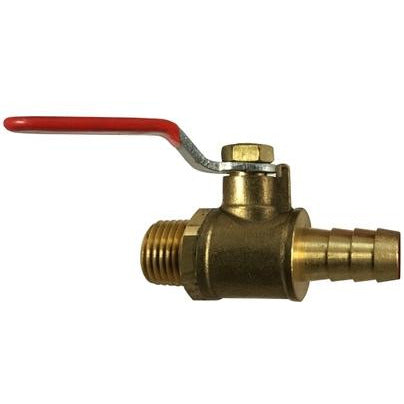

The 1/2 Hose Barb x 1/2 Male Iron Pipe Forged Mini Ball Valve is a durable and compact shutoff valve designed for fluid and gas control in various industrial, plumbing, and automotive applications. The forged brass construction ensures higher strength and durability compared to cast valves. The hose barb inlet allows a secure connection for flexible tubing, while the MIP threaded outlet connects to rigid piping or fittings. The quarter-turn operation enables quick and precise shutoff.


Specification Value
TYPE Hose Barb Male Iron Pipe Forged Mani Ball Valve
DESIGN Quarter-turn handle, provides smooth and quick shutoff control
WEIGHT 0.620
BALL MATERIAL Brass provides higher durability
BODY MATERIAL Forged Brass
CONNECTION TYPE MIP x Hose Barbed
DIMENSIONS 3.19" OAL x 1.51" H
DOMESTIC/IMPORT Import
HANDLE MATERIAL Steel
DIS MATERIAL Brass
INLET TO OUTLET LENGTH 2.15"
NOMINAL SIZE 1/2"
OPERATOR TYPE 180 deg Operational Handle
PRESSURE RATING 200 psi WOG
SEAT MATERIAL PTFE
STEM MATERIAL Brass
TEMPERATURE RATING -20 to 250 deg F
TRIM MATERIAL Steel Screw/NBR O-Ring/Steel Nut
THREAD SIZE 1/2-14
ADDITIONAL DIMENSION
 C        0.73
APPLICATIONS Ideal for Plumbing & Water Systems, Compressed Air & Pneumatic Systems, Fuel & Oil Lines, HVAC & Refrigeration, Agriculture & Irrigation, Chemical & Industrial Processing
BRAND Midland Industries

Description
The 1/2 Hose Barb x 1/2 Male Iron Pipe Forged Mini Ball Valve is a durable and compact shutoff valve designed for fluid and gas control in various industrial, plumbing, and automotive applications. The forged brass construction ensures higher strength and durability compared to cast valves. The hose barb inlet allows a secure connection for flexible tubing, while the MIP threaded outlet connects to rigid piping or fittings. The quarter-turn operation enables quick and precise shutoff.


Specification Value
TYPE Hose Barb Male Iron Pipe Forged Mani Ball Valve
DESIGN Quarter-turn handle, provides smooth and quick shutoff control
WEIGHT 0.620
BALL MATERIAL Brass provides higher durability
BODY MATERIAL Forged Brass
CONNECTION TYPE MIP x Hose Barbed
DIMENSIONS 3.19" OAL x 1.51" H
DOMESTIC/IMPORT Import
HANDLE MATERIAL Steel
DIS MATERIAL Brass
INLET TO OUTLET LENGTH 2.15"
NOMINAL SIZE 1/2"
OPERATOR TYPE 180 deg Operational Handle
PRESSURE RATING 200 psi WOG
SEAT MATERIAL PTFE
STEM MATERIAL Brass
TEMPERATURE RATING -20 to 250 deg F
TRIM MATERIAL Steel Screw/NBR O-Ring/Steel Nut
THREAD SIZE 1/2-14
ADDITIONAL DIMENSION
 C        0.73
APPLICATIONS Ideal for Plumbing & Water Systems, Compressed Air & Pneumatic Systems, Fuel & Oil Lines, HVAC & Refrigeration, Agriculture & Irrigation, Chemical & Industrial Processing
BRAND Midland Industries

Midland Industries by Midland Industries

944139

1/2 Hose Barb x 1/2 Male Iron Pipe Forged Mini Ball Valve

$25.15
$25.15
