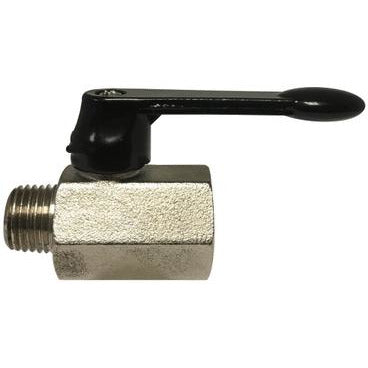

A miniature brass ball valve with a black plastic lever handle and Viton seals. - 1/2 Female x Male Mini Ball Valve Lever Handle with Viton
    A miniature brass ball valve with a black plastic lever handle and Viton seals. - 1/2 Female x Male Mini Ball Valve Lever Handle with Viton
A miniature brass ball valve with a black plastic lever handle and Viton seals. - 1/2 Female x Male Mini Ball Valve Lever Handle with Viton
A miniature brass ball valve with a black plastic lever handle and Viton seals. - 1/2 Female x Male Mini Ball Valve Lever Handle with Viton
    A miniature brass ball valve with a black plastic lever handle and Viton seals. - 1/2 Female x Male Mini Ball Valve Lever Handle with Viton
A miniature brass ball valve with a black plastic lever handle and Viton seals. - 1/2 Female x Male Mini Ball Valve Lever Handle with Viton
Description
The 1/2 Female x Male Mini Ball Valve Lever Handle with Viton is a compact, high-performance shutoff valve designed for fluid and gas control in industrial, commercial, and residential applications. With female iron pipe (FIP) threading on the inlet and male iron pipe (MIP) threading on the outlet, it allows for versatile inline connections. The quarter-turn lever handle provides easy operation, and Viton seals enhance resistance to fuels, oils, and chemicals, making it ideal for demanding environments.


Specification Value
TYPE Female x Male Mini Valve Lever Handle
DESIGN Quarter-turn lever handle, fast and easy shutoff for precise flow control
WEIGHT 0.245
BALL MATERIAL Chromium-Plated Brass provides higher strength and longevity
BODY MATERIAL Forged Brass
ADDITIONAL INFORMATION Brass Ring Unit and Stern, Steel Screw, 1.99 in Handle Center to Handle End,
CONNECTION TYPE MPT x FPT
DIMENSIONS 1.77"
FINISH Chrome-Plated
HANDLE MATERIAL Alumzinc
INLET TO OUTLET LENGTH 1.77"
NOMINAL SIZE 1/2"
OPENING SIZE 0.35"
OPERATOR TYPE 1/4 Turn Lever Handle
PRESSURE RATING 450 psi
SEAL MATERIAL PTFE/Fluoroelastomer
SEAT MATERIAL PTFE
TEMPERATURE RATING 32 to 176 deg F
TOP TO BOTTOM 1/2-14
THREAD SIZE 1/8-27
APPLICATIONS Ideal for Plumbing & Water Systems, Compressed Air & Pneumatic Systems, Fuel & Oil Lines, HVAC & Refrigeration,  Gas & Chemical Processing, Industrial & Mechanical Systems
BRAND Midland Industries

Link to Midland Industries Catalog
Description
The 1/2 Female x Male Mini Ball Valve Lever Handle with Viton is a compact, high-performance shutoff valve designed for fluid and gas control in industrial, commercial, and residential applications. With female iron pipe (FIP) threading on the inlet and male iron pipe (MIP) threading on the outlet, it allows for versatile inline connections. The quarter-turn lever handle provides easy operation, and Viton seals enhance resistance to fuels, oils, and chemicals, making it ideal for demanding environments.


Specification Value
TYPE Female x Male Mini Valve Lever Handle
DESIGN Quarter-turn lever handle, fast and easy shutoff for precise flow control
WEIGHT 0.245
BALL MATERIAL Chromium-Plated Brass provides higher strength and longevity
BODY MATERIAL Forged Brass
ADDITIONAL INFORMATION Brass Ring Unit and Stern, Steel Screw, 1.99 in Handle Center to Handle End,
CONNECTION TYPE MPT x FPT
DIMENSIONS 1.77"
FINISH Chrome-Plated
HANDLE MATERIAL Alumzinc
INLET TO OUTLET LENGTH 1.77"
NOMINAL SIZE 1/2"
OPENING SIZE 0.35"
OPERATOR TYPE 1/4 Turn Lever Handle
PRESSURE RATING 450 psi
SEAL MATERIAL PTFE/Fluoroelastomer
SEAT MATERIAL PTFE
TEMPERATURE RATING 32 to 176 deg F
TOP TO BOTTOM 1/2-14
THREAD SIZE 1/8-27
APPLICATIONS Ideal for Plumbing & Water Systems, Compressed Air & Pneumatic Systems, Fuel & Oil Lines, HVAC & Refrigeration,  Gas & Chemical Processing, Industrial & Mechanical Systems
BRAND Midland Industries

Link to Midland Industries Catalog
Midland Industries by Midland Industries

46933L

1/2 Female x Male Mini Ball Valve Lever Handle with Viton

$9.43
$9.43
Quantity:
