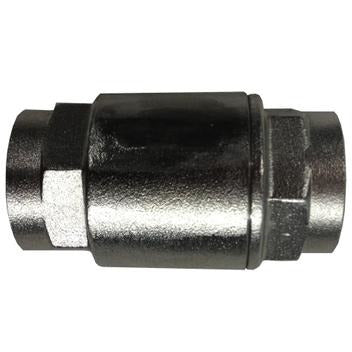

The 1/2 Barrel Spring Check Valve is a compact, in-line, one-way valve that prevents backflow in fluid and gas systems. It features a spring-loaded mechanism that automatically closes when the flow stops, ensuring unidirectional flow. The "barrel" design refers to its cylindrical body, making it easy to install in tight spaces.
| Specification | Value |
|---|---|
| TYPE | Check Valve |
| DESIGN |
Barrel-shaped compact body for easy in-line installation in tight spaces |
| BODY MATERIAL | CF8M/CF8 Stainless Steel for superior corrosion resistance |
| ADDITIONAL INFORMATION | 2 psi Opening Pressure, 2.24" Length, 1.28" Diameter |
| WEIGHT (LBS) | 0.360 |
| CONNECTION TYPE | FNPT |
| DISC MATERIAL | 304 Stainless Steel |
| DOMESTIC/IMPORT | Import |
| INLET TO OUTLET LENGTH | 2.24" |
|
MEDIA |
Gas, Oil, Water |
| NOMINAL SIZE | 1/2" |
| PRESSURE RATING | 300 psi |
| SEAL MATERIAL | PTFE |
| SEAT MATERIAL | NBR |
| TEMPERATURE RATING | -10 to 120 deg C |
| THREAD SIZE | 1/2-14 |
| TRIM MATERIAL | 304 Stainless Steel Bolt/316/304 Stainless Steel Spring/CF8M/CF8 Stainless Steel Cap |
| CASE | 100 |
| APPLICATIONS | Ideal for hydraulic & pneumatic systems, chemical processing, water & wastewater treatment, oil & gas industry, food & beverage processing, compressed air & gas lines |
| BRAND | Midland Industries |
The 1/2 Barrel Spring Check Valve is a compact, in-line, one-way valve that prevents backflow in fluid and gas systems. It features a spring-loaded mechanism that automatically closes when the flow stops, ensuring unidirectional flow. The "barrel" design refers to its cylindrical body, making it easy to install in tight spaces.
| Specification | Value |
|---|---|
| TYPE | Check Valve |
| DESIGN |
Barrel-shaped compact body for easy in-line installation in tight spaces |
| BODY MATERIAL | CF8M/CF8 Stainless Steel for superior corrosion resistance |
| ADDITIONAL INFORMATION | 2 psi Opening Pressure, 2.24" Length, 1.28" Diameter |
| WEIGHT (LBS) | 0.360 |
| CONNECTION TYPE | FNPT |
| DISC MATERIAL | 304 Stainless Steel |
| DOMESTIC/IMPORT | Import |
| INLET TO OUTLET LENGTH | 2.24" |
|
MEDIA |
Gas, Oil, Water |
| NOMINAL SIZE | 1/2" |
| PRESSURE RATING | 300 psi |
| SEAL MATERIAL | PTFE |
| SEAT MATERIAL | NBR |
| TEMPERATURE RATING | -10 to 120 deg C |
| THREAD SIZE | 1/2-14 |
| TRIM MATERIAL | 304 Stainless Steel Bolt/316/304 Stainless Steel Spring/CF8M/CF8 Stainless Steel Cap |
| CASE | 100 |
| APPLICATIONS | Ideal for hydraulic & pneumatic systems, chemical processing, water & wastewater treatment, oil & gas industry, food & beverage processing, compressed air & gas lines |
| BRAND | Midland Industries |
SKU:949443
1/2 Barrel Spring Check Valve
- Regular price
- $64.46
- Sale price
- $64.46
