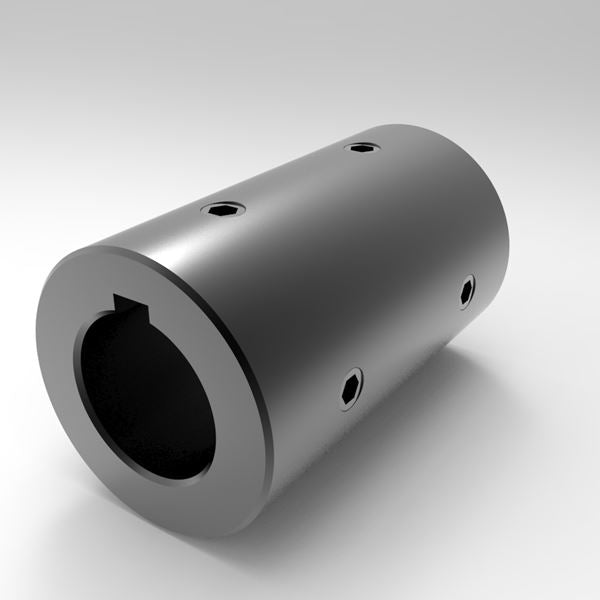

The 1-1/8" x 1-1/8" Steel (Black Oxide) Set Screw Coupling with Keyway is a simple and economical rigid coupling designed to connect two shafts for reliable torque transmission. Precision-machined from black oxide steel, it uses set screws to secure the coupling directly to the shaft surfaces, providing a cost-effective solution where frequent adjustment is not required. The integrated keyways provide added torque capacity and fixed shaft phasing, while an additional set of screws can significantly increase load capacity.
|
SPECIFICATIONS |
DETAILS |
| PART NUMBER | 6L102102K |
| TYPE | Set Coupling |
| DESIGN | Set screw connection offers a simple and economical method of securing the coupling |
| MATERIAL | Steel (Black Oxide) construction provides strength and durability for general power transmission applications |
| APPROXIMATE WEIGHT | 1.62 lb |
| ALLOY | 1215 |
| FINISH | Black Oxide |
| SERIES | Signature |
| COUNTRY ORIGIN | USA |
| UPC CODE | 662786045646 |
| REACH COMPLIANT | Yes |
| REACH COMPLIANT | Yes |
| DIMENSIONAL ATTRIBUTES | |
| BORE SIZE A | 1-1/8 in |
| KEYWAY A | 0.250 in |
| BORE SIZE B | 1.125 in |
| KEYWAY B | 0.250 in |
| OUTSIDE DIAMETER | 1.875 in |
| TOTAL LENGTH | 3.375 in |
| RECESSED SCREW | Yes |
| SCREW SIZE | 3/8-16 x 3/8 in |
| SCREW SIZE OVER KEYWAY | 3/8-16 x 1/4 in |
| SCREW MATERIAL | Alloy Steel |
| APPLICATIONS | Ideal for Shaft-to-Shaft Connections, Precision Shaft Alignment, Motion Control Systems, Industrial Automation, Robotics, CNC Machinery, Precision Machinery, OEM Assemblies |
| BRAND | Stafford Manufacturing |
The 1-1/8" x 1-1/8" Steel (Black Oxide) Set Screw Coupling with Keyway is a simple and economical rigid coupling designed to connect two shafts for reliable torque transmission. Precision-machined from black oxide steel, it uses set screws to secure the coupling directly to the shaft surfaces, providing a cost-effective solution where frequent adjustment is not required. The integrated keyways provide added torque capacity and fixed shaft phasing, while an additional set of screws can significantly increase load capacity.
|
SPECIFICATIONS |
DETAILS |
| PART NUMBER | 6L102102K |
| TYPE | Set Coupling |
| DESIGN | Set screw connection offers a simple and economical method of securing the coupling |
| MATERIAL | Steel (Black Oxide) construction provides strength and durability for general power transmission applications |
| APPROXIMATE WEIGHT | 1.62 lb |
| ALLOY | 1215 |
| FINISH | Black Oxide |
| SERIES | Signature |
| COUNTRY ORIGIN | USA |
| UPC CODE | 662786045646 |
| REACH COMPLIANT | Yes |
| REACH COMPLIANT | Yes |
| DIMENSIONAL ATTRIBUTES | |
| BORE SIZE A | 1-1/8 in |
| KEYWAY A | 0.250 in |
| BORE SIZE B | 1.125 in |
| KEYWAY B | 0.250 in |
| OUTSIDE DIAMETER | 1.875 in |
| TOTAL LENGTH | 3.375 in |
| RECESSED SCREW | Yes |
| SCREW SIZE | 3/8-16 x 3/8 in |
| SCREW SIZE OVER KEYWAY | 3/8-16 x 1/4 in |
| SCREW MATERIAL | Alloy Steel |
| APPLICATIONS | Ideal for Shaft-to-Shaft Connections, Precision Shaft Alignment, Motion Control Systems, Industrial Automation, Robotics, CNC Machinery, Precision Machinery, OEM Assemblies |
| BRAND | Stafford Manufacturing |
SKU:6L102102K
1-1/8" x 1-1/8" Steel (Black Oxide) Set Screw Coupling with Keyway
- Regular price
- $71.52
- Sale price
- $71.52
