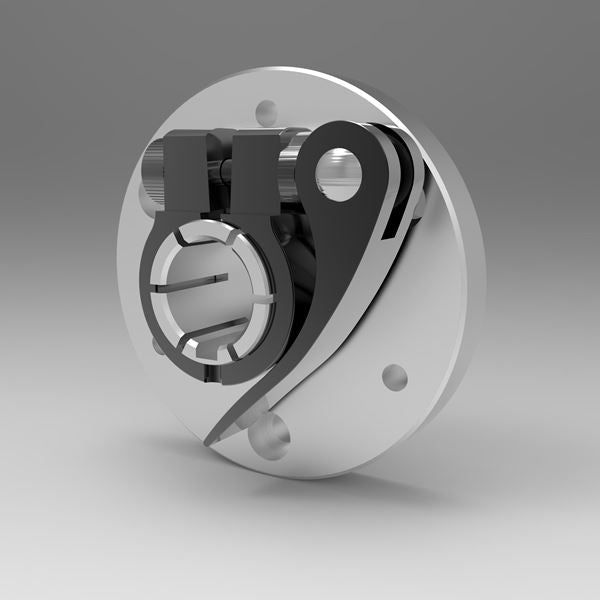

Precision-machined aluminum mounting collar with 1 1/4 inch bore for Python System assemblies | 1 1/4" Aluminum Python Flange Mounting Collar | PYFMA104K
    Precision-machined aluminum mounting collar with 1 1/4 inch bore for Python System assemblies | 1 1/4" Aluminum Python Flange Mounting Collar | PYFMA104K
Precision-machined aluminum mounting collar with 1 1/4 inch bore for Python System assemblies | 1 1/4" Aluminum Python Flange Mounting Collar | PYFMA104K
Precision-machined aluminum mounting collar with 1 1/4 inch bore for Python System assemblies | 1 1/4" Aluminum Python Flange Mounting Collar | PYFMA104K
    Precision-machined aluminum mounting collar with 1 1/4 inch bore for Python System assemblies | 1 1/4" Aluminum Python Flange Mounting Collar | PYFMA104K
Precision-machined aluminum mounting collar with 1 1/4 inch bore for Python System assemblies | 1 1/4" Aluminum Python Flange Mounting Collar | PYFMA104K
Description
The 1 1/4" Aluminum Python Flange Mounting Collar is an adjustable flange collar designed for quick, tool-free positioning and secure mounting in linear and rotary applications. Its integrated Flip-Lok™ lever-operated clamp allows easy hand adjustment and repositioning, while the thumbscrew tension nut provides reliable clamping force when engaged. Featuring a 6-hole bolt pattern and keyway, the collar offers flexible mounting options for equipment and components. Manufactured from lightweight, durable aluminum, it supports up to 200 lbs. of axial load and is ideal for use in bagging and packaging machinery, paper handling systems, laboratory equipment, and other industrial applications requiring fast, repeatable adjustments.



SPECIFICATIONS DETAILS
PART NUMBER PYFMA104K
TYPE Python
DESIGN
Flip-Lok™ lever-operated clamp allows easy hand adjustment and repositioning
MATERIAL
Aluminum offers a lightweight construction which helps reduce overall system weight while maintaining dependable holding power
UPC CODE 662786045271
ALLOY 2024
FINISH Shiny
COUNTRY OF ORIGIN
USA / Handle Made In China
MAXIMUM AXIAL LOAD 200 lb
CLAMP PART # QC1A108P7
DIMENSIONAL ATTRIBUTES
BORE 1-1/4 in
LEVER HUB O.D. 1.875 in
LEVER RELAXED ACTUAL GAP 0.31 in
KEYWAY WIDTH 0.25 in
FLANGE O.D. 3.485 in
FLANGE WIDTH 0.445 in
FLANGE BOLT CIRCLE DIA. 2.75 in
FLANGE THREAD 1/4-20 in
FLANGE C-BORE DIA. 0.406 in
FLANGE C-BORE DEPTH 0.255 in
FLANGE THRU DIA. 0.266 in
COLLAR HUB O.D. 1.505 in
COLLAR RECESS DIA. 1.375 in
COLLAR BOSS WIDTH 0.285 in
COLLAR BOSS HEIGHT 0.15 in
COLLAR BOSS DEPTH 0.125 in
OVER-ALL WIDTH 1.225 in

APPLICATIONS
Ideal for bagging and packaging machinery, paper rolls, lab equipment, rotating equipment, pneumatic, hydraulic systems, conveyor, automation equipment, robotics, machinery, instrumentation, and general fabrication.
BRAND Stafford Manufacturing


Description
The 1 1/4" Aluminum Python Flange Mounting Collar is an adjustable flange collar designed for quick, tool-free positioning and secure mounting in linear and rotary applications. Its integrated Flip-Lok™ lever-operated clamp allows easy hand adjustment and repositioning, while the thumbscrew tension nut provides reliable clamping force when engaged. Featuring a 6-hole bolt pattern and keyway, the collar offers flexible mounting options for equipment and components. Manufactured from lightweight, durable aluminum, it supports up to 200 lbs. of axial load and is ideal for use in bagging and packaging machinery, paper handling systems, laboratory equipment, and other industrial applications requiring fast, repeatable adjustments.



SPECIFICATIONS DETAILS
PART NUMBER PYFMA104K
TYPE Python
DESIGN
Flip-Lok™ lever-operated clamp allows easy hand adjustment and repositioning
MATERIAL
Aluminum offers a lightweight construction which helps reduce overall system weight while maintaining dependable holding power
UPC CODE 662786045271
ALLOY 2024
FINISH Shiny
COUNTRY OF ORIGIN
USA / Handle Made In China
MAXIMUM AXIAL LOAD 200 lb
CLAMP PART # QC1A108P7
DIMENSIONAL ATTRIBUTES
BORE 1-1/4 in
LEVER HUB O.D. 1.875 in
LEVER RELAXED ACTUAL GAP 0.31 in
KEYWAY WIDTH 0.25 in
FLANGE O.D. 3.485 in
FLANGE WIDTH 0.445 in
FLANGE BOLT CIRCLE DIA. 2.75 in
FLANGE THREAD 1/4-20 in
FLANGE C-BORE DIA. 0.406 in
FLANGE C-BORE DEPTH 0.255 in
FLANGE THRU DIA. 0.266 in
COLLAR HUB O.D. 1.505 in
COLLAR RECESS DIA. 1.375 in
COLLAR BOSS WIDTH 0.285 in
COLLAR BOSS HEIGHT 0.15 in
COLLAR BOSS DEPTH 0.125 in
OVER-ALL WIDTH 1.225 in

APPLICATIONS
Ideal for bagging and packaging machinery, paper rolls, lab equipment, rotating equipment, pneumatic, hydraulic systems, conveyor, automation equipment, robotics, machinery, instrumentation, and general fabrication.
BRAND Stafford Manufacturing


Stafford Manufacturing by Stafford Manufacturing

PYFMA104K

1 1/4" Aluminum Python Flange Mounting Collar

$111.10
$111.10
