The 1-1/4 Canadian Standards Association Full Port Ball Valve is a high-quality shutoff valve designed for gas and fuel applications. Certified by the Canadian Standards Association (CSA), this valve meets strict safety and performance regulations for use in natural gas, propane, and other fuel systems. The full port design ensures maximum flow capacity with minimal pressure drop.
| Specification | Value |
|---|---|
|
TYPE |
CSA Full Port Ball Valve |
| DESIGN |
Full port design has an internal bore that matches the pipe size, allows unrestricted flow minimizing turbulence and pressure drop. |
| BALL MATERIAL | Chromium-Plated Brass |
| BODY MATERIAL | Forged Brass for durability and corrosion resistance |
| WEIGHT (LBS) | 1.640 |
| ADDITIONAL INFORMATION | 150 psi WSP Saturated Steam Pressure |
|
CONNECTION TYPE |
FNPT x FNPT |
| DIMENSIONS | 3-1/2" L |
| DOMESTIC/IMPORT | Import |
| HANDLE MATERIAL | Plated Steel |
| INLET TO OUTLET LENGTH | 3-1/2" |
| NOMINAL SIZE | 1-1/4" |
| OPERATOR TYPE | Reversible Handle |
| PORT TYPE | Full |
| PRESSURE RATING | 600 psi WOG |
| SEAL MATERIAL | TFE |
| SEAT MATERIAL | PTFE |
| STEM MATERIAL | Brass |
| TEMPERATURE RATING |
20 to 248 deg F |
| TOP TO INLET CENTER | 2.32" |
| TRIM MATERIAL | Steel Nut/NBR 80 O-Ring |
| THREAD SIZE | 1-1/4-11-1/2 |
| BOXCASE | 4/16 |
| ADDITIONAL DIMENSIONS | C 4.72 D 0.72 CH 1.85 DN 1.24 |
| APPLICATIONS |
Ideal for Natural Gas & Propane Systems, HVAC & Heating Systems, Fuel Line Shutoff, Plumbing & Piping Systems, Manufacturing & Process Control. |
| BRAND | Midland Industries |
The 1-1/4 Canadian Standards Association Full Port Ball Valve is a high-quality shutoff valve designed for gas and fuel applications. Certified by the Canadian Standards Association (CSA), this valve meets strict safety and performance regulations for use in natural gas, propane, and other fuel systems. The full port design ensures maximum flow capacity with minimal pressure drop.
| Specification | Value |
|---|---|
|
TYPE |
CSA Full Port Ball Valve |
| DESIGN |
Full port design has an internal bore that matches the pipe size, allows unrestricted flow minimizing turbulence and pressure drop. |
| BALL MATERIAL | Chromium-Plated Brass |
| BODY MATERIAL | Forged Brass for durability and corrosion resistance |
| WEIGHT (LBS) | 1.640 |
| ADDITIONAL INFORMATION | 150 psi WSP Saturated Steam Pressure |
|
CONNECTION TYPE |
FNPT x FNPT |
| DIMENSIONS | 3-1/2" L |
| DOMESTIC/IMPORT | Import |
| HANDLE MATERIAL | Plated Steel |
| INLET TO OUTLET LENGTH | 3-1/2" |
| NOMINAL SIZE | 1-1/4" |
| OPERATOR TYPE | Reversible Handle |
| PORT TYPE | Full |
| PRESSURE RATING | 600 psi WOG |
| SEAL MATERIAL | TFE |
| SEAT MATERIAL | PTFE |
| STEM MATERIAL | Brass |
| TEMPERATURE RATING |
20 to 248 deg F |
| TOP TO INLET CENTER | 2.32" |
| TRIM MATERIAL | Steel Nut/NBR 80 O-Ring |
| THREAD SIZE | 1-1/4-11-1/2 |
| BOXCASE | 4/16 |
| ADDITIONAL DIMENSIONS | C 4.72 D 0.72 CH 1.85 DN 1.24 |
| APPLICATIONS |
Ideal for Natural Gas & Propane Systems, HVAC & Heating Systems, Fuel Line Shutoff, Plumbing & Piping Systems, Manufacturing & Process Control. |
| BRAND | Midland Industries |
SKU:943205

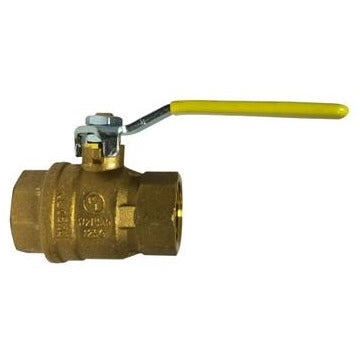

1-1/4 Canadian Standards Association Full Port Ball Valve
- Regular price
- $101.50
- Sale price
- $101.50
- Regular price
-
Couldn't load pickup availability
