Description

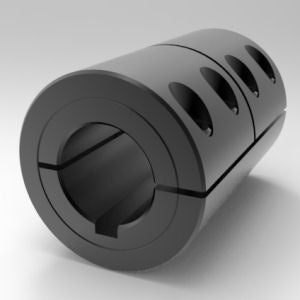

The 1-1/2" x 1-1/2" Steel (Black Oxide) One-Piece Clamp Rigid Shaft Coupling with Keyway - High Strength is designed to securely connect two aligned shafts, allowing them to function as a single unit with zero backlash for precise torque transmission. Precision-machined from steel with a black oxide finish, it features standard keyways that provide added torque capacity and fixed shaft phasing. The one-piece clamp design provides a secure, non-marring grip with high clamping force while protecting shaft surfaces from damage. Straight-through and stepped bore configurations are available to accommodate different shafting requirements. Stocked In: Steel, Stainless Steel, Aluminum, Style: High Strength



SPECIFICATIONS

DETAILS
PART NUMBER 5L108108K
TYPE High Strength
DESIGN Standard keyways - enhance torque transmission and maintain fixed shaft phasing
MATERIAL Steel (Black Oxide) construction with black oxide finish provides excellent strength, durability, and wear resistance
APPROXIMATE WEIGHT 3.06 lb
ALLOY 1215
FINISH Black Oxide
SERIES Signature
COUNTRY ORIGIN USA
UPC CODE 662786016080
ROHS2 COMPLIANT Yes
REACH COMPLIANT Yes
DIMENSIONAL ATTRIBUTES
BORE SIZE A 1-1/2 in
KEYWAY A 3/8 in
BORE SIZE B 1-1/2 in
KEYWAY B 0.375 in
OUTSIDE DIAMETER 2.500 in
TOTAL LENGTH 3.750 in
RECESSED SCREW Yes
SCREW SIZE 1/4-28 x 3/4 in
SCREW MATERIAL Alloy Steel
CAPACITIES
SCREW SEATING TORQUE 162 in-lb
AXIAL HOLD 2125 lb
APPLICATIONS Ideal for Precision Shaft Alignment, Motion Control Systems, Industrial Automation, Robotics, CNC Machinery, Servo-Driven Equipment, Precision Machinery, OEM Assemblies
BRAND Stafford Manufacturing
