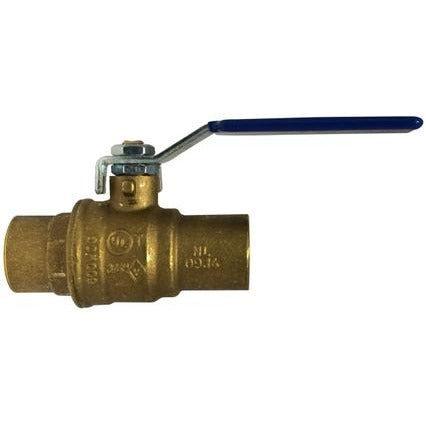

A brass full port ball valve with a carbon steel handle, marked with the brand Midland Industries.
    A brass full port ball valve with a carbon steel handle, marked with the brand Midland Industries.
A brass full port ball valve with a carbon steel handle, marked with the brand Midland Industries.
A brass full port ball valve with a carbon steel handle, marked with the brand Midland Industries.
    A brass full port ball valve with a carbon steel handle, marked with the brand Midland Industries.
A brass full port ball valve with a carbon steel handle, marked with the brand Midland Industries.
Description
The 1-1/2 Lead-Free Compression x Compression Full Port Ball Valve is a high-quality, versatile valve designed for fluid control applications in potable water systems, industrial systems, and HVAC applications. This valve features carbon steel (Carbon x Carbon) threaded connections, providing a robust solution for applications where strength and reliability are essential. The valve is made from lead-free brass to ensure safety in drinking water systems while complying with CSA and lead-free regulations. The full port design allows for maximum flow capacity with minimal pressure drop.

Specification Value
TYPE Lead-Free Compression x Compression Full Port Ball Valve
DESIGN Full port design, provides an unobstructed flow for liquids or gases, allowing for maximum flow rate and reducing pressure drop compared to standard ball valves.
STEM MATERIAL Brass
SEAT MATERIAL PTFE
WEIGHT (lbs) 2.045
BALL MATERIAL Brass
BODY MATERIAL Brass provides excellent corrosion resistance and safety for potable water systems.
CONNECTION TYPE C x C
DIMENSIONS 4.96" L
DOMESTIC/IMPORT Import
HANDLE MATERIAL Carbon Steel
INLET TO OUTLET LENGTH 4.96"
LEAD-FREE/CONTAINS LEAD Lead-Free
MATERIAL STANDARD CW510L, CW614N
NOMINAL SIZE 1-1/2"
OPERATOR TYPE 1/4 Turn Handle
PACKING MATERIAL PTFE
PORT TYPE Full
PRESSURE RATING 600 psi WOG
SEAL MATERIAL PTFE
TEMPERATURE RATING -20 to 248 deg F
TOP TO INLET CENTER 2.6"
TRIM MATERIAL Steel Nut
APPLICATIONS  Ideal for Potable Water Systems, Industrial Systems, HVAC Systems, Chemical and Gas Systems, Plumbing Systems, and Fire Protection Systems.
BRAND Midland Industries

Link to Midland Industries Catalog
Description
The 1-1/2 Lead-Free Compression x Compression Full Port Ball Valve is a high-quality, versatile valve designed for fluid control applications in potable water systems, industrial systems, and HVAC applications. This valve features carbon steel (Carbon x Carbon) threaded connections, providing a robust solution for applications where strength and reliability are essential. The valve is made from lead-free brass to ensure safety in drinking water systems while complying with CSA and lead-free regulations. The full port design allows for maximum flow capacity with minimal pressure drop.

Specification Value
TYPE Lead-Free Compression x Compression Full Port Ball Valve
DESIGN Full port design, provides an unobstructed flow for liquids or gases, allowing for maximum flow rate and reducing pressure drop compared to standard ball valves.
STEM MATERIAL Brass
SEAT MATERIAL PTFE
WEIGHT (lbs) 2.045
BALL MATERIAL Brass
BODY MATERIAL Brass provides excellent corrosion resistance and safety for potable water systems.
CONNECTION TYPE C x C
DIMENSIONS 4.96" L
DOMESTIC/IMPORT Import
HANDLE MATERIAL Carbon Steel
INLET TO OUTLET LENGTH 4.96"
LEAD-FREE/CONTAINS LEAD Lead-Free
MATERIAL STANDARD CW510L, CW614N
NOMINAL SIZE 1-1/2"
OPERATOR TYPE 1/4 Turn Handle
PACKING MATERIAL PTFE
PORT TYPE Full
PRESSURE RATING 600 psi WOG
SEAL MATERIAL PTFE
TEMPERATURE RATING -20 to 248 deg F
TOP TO INLET CENTER 2.6"
TRIM MATERIAL Steel Nut
APPLICATIONS  Ideal for Potable Water Systems, Industrial Systems, HVAC Systems, Chemical and Gas Systems, Plumbing Systems, and Fire Protection Systems.
BRAND Midland Industries

Link to Midland Industries Catalog
Midland Industries by Midland Industries

940216LF

1-1/2 Lead-Free Compression x Compression Full Port Ball Valve

$68.37
